Thông tin chi tiết sản phẩm:
|
| Quy mô chuyển đổi: | Rockwell hời hợt, Brinell, Vickers | Thời gian ở lại: | 2-60s |
|---|---|---|---|
| Tổng tải của Rockwell: | 60kgf(588N) 100kgf(980N) 150kgf(1471N) | Độ chính xác đo độ cứng: | 0,1 giờ |
| Độ cao tối đa của mẫu: | 220mm | Khoảng cách của Indenter đến bức tường bên ngoài: | 160mm |
| Dữ liệu đầu ra: | Máy in bên trong, RS-232 | Chỉ định giá trị độ cứng: | Màn hình hiển thị LCD lớn |
| Làm nổi bật: | Digital Rockwell Hardness Tester,Automatic Loading Hardness Testing Machine,Multi Scales Metal Hardness Tester |
||

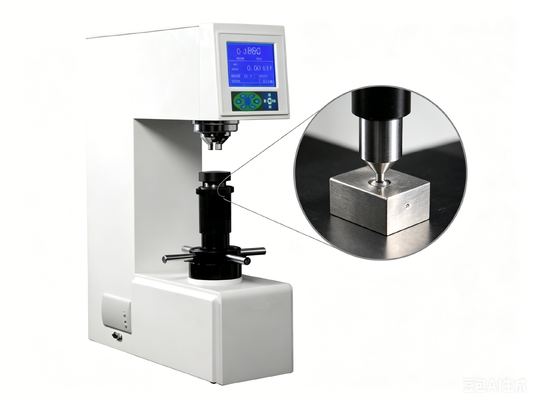

HR-150D Digital Rockwell Hardness Tester Automatic Loading HRA HRB HRC Multi Scales Metal Hardness Testing Machine
Main Features:
HR-150D Digital Rockwell hardness tester is equipped big screen LCD monitor. Operation panel use the menu type structure, the main functions are: Rockwell hardness of the scale choice, the choice of plastic Rockwell ruler, various guide the conversion between hardness, hardness testing results automatically save and RS-232 super terminal Settings, hardness value error can be modified HRough software input, hardness value more accurately meet test requirement.
Technical Specifications:
|
HR-150D |
|
|
Conversion Scale |
Superficial Rockwell, Brinell, Vickers |
|
Indication of Hardness Value |
Large LCD screen display |
|
Data output |
Inside Printer, RS-232 |
|
Duration time |
2-60s |
|
Carried Standard |
GB/T230.2 Chinese Standard, JJG112 Inspection Rule |
|
Preliminary Testing force |
10kgf(98.07N) |
|
Testing force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
|
Rockwell Scale |
|
|
Hardness measuring range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
|
Max Height of Specimen |
220mm |
|
160mm |
|
|
Power supply |
AC220V+5%,50-60Hz |
|
520*240*720 |
|
|
Net weight |
About 65Kg |
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Standard Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell Indenter |
1 |
1.5875mm Ball Indenter |
1 |
|
Hardness block (HRC High Low 2, HRB 1) |
3 |
Large, Medium, “V” shaped Testing Table |
1 each |
|
Weights(A,B,C) |
1 each |
Plastic Dustproof cover |
1 |
|
Operation Manual |
1 |
Product certificate |
1 |
Optional Accessories:
Data processing software CD 1pc
USB cable 1pc
