Thông tin chi tiết sản phẩm:
|
| UV(Ánh sáng)-FLUX Nhiệt độ trong phòng 25℃: | 10000uW/cm2 | Diện tích chiếu xạ ở độ sâu 380mm: ( ≥1000uw/cm2): | Đường kính khoảng 200mm |
|---|---|---|---|
| lỗi FLUX: | 0-40oC ±10% | Nguồn điện: | AC100- 240V，50/60Hz |
| Bước sóng: | Nhiệt độ phòng 25oC, 365nm±3nm (UVA) | Quyền lực: | Đèn UV LED-9VA-3VA |
| Đặc điểm phân bố ánh sáng: | Phân bố ánh sáng trung tâm | ||
| Làm nổi bật: | 365nm UV LED inspection lamp,handheld UV black light,magnetic particle NDT lamp |
||

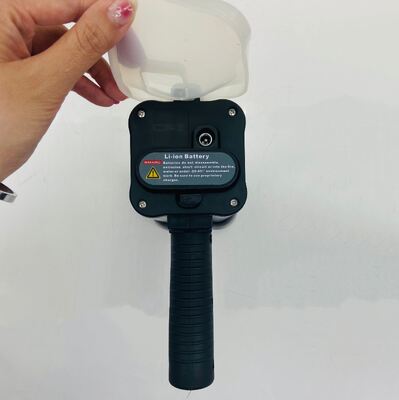

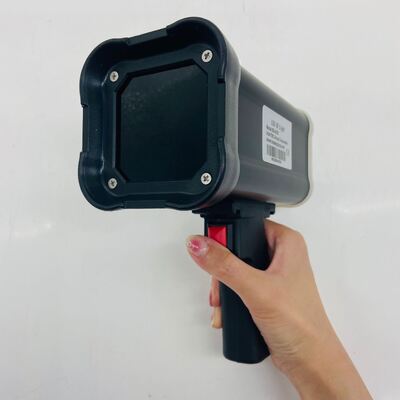

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light
Features
*Energy saving is only 9VA of power consumption.
*The average lifespan of a light source of 30000H.
*Original imported light source UVLED.
*The UV-B content is 0.
*3-4 hours of battery life.
*Quick battery replacement
*Weight containing less than 500g of batteries.
*There is no external wiring.
*Quartz and optical glass module, non PMMA material, excellent weather resistance.
*Continuous working with an external surface temperature rise of less than 5K (5 ℃).
*No preheating required, instantly reaching 100% power.
*Equipped with dual functions of UV and white light, with one hand switching. 3pcs UV lamps, 1pc white light lamp
|
Project |
Parameter / method |
|
Form |
Handheld |
|
UV(Light)-FLUX 25 ℃ Room temperature ,Calibration at 380mm |
UV -FLUX 10000uW/cm² Light-MAX1500LUX |
|
Coverage area calibration at 380mm |
Approximately 200mm in diameter |
|
FLUX error |
0-40℃ ±10％ |
|
Light distribution characteristics |
Center light distribution |
|
power supply |
AC100-240V 50/60Hz |
|
power |
UV LED-9VA Light-3VA |
|
wavelength |
Room temperature 25℃ 365nm±3nm(UVA) |
|
Dimensions |
137mm(W)*73mm(D)*175mm(H) |
|
weight |
498g |
|
battery capacity |
2200mA/H 12.6V |
|
Charging time |
3-4H |
|
Battery life (cumulative time) |
UV LED 3-4H or Light 7H |
