Thông tin chi tiết sản phẩm:
|
| Phạm vi kiểm tra (um): | 0-1250um | Môi trường sử dụng:: | 0-+45°C(32℉-104℉),<90%RH |
|---|---|---|---|
| Độ phân giải)(ừm): | 0,1μm /1μm | Độ chính xác của phép đo: | ±1-3%n hoặc ±2,5um |
| Diện tích đo tối thiểu: | 6mm | Độ dày mẫu tối thiểu: | 0,3mm |
| Làm nổi bật: | Eddy current coating thickness gauge,Anodizing paint thickness tester,Separate probe thickness gauge |
||

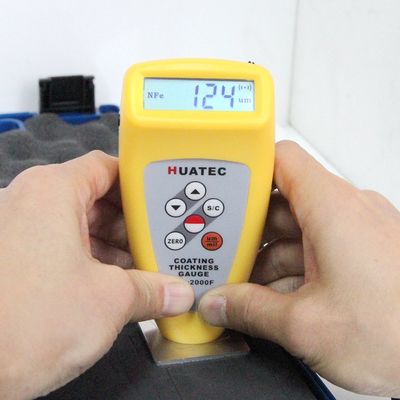

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester
Application:
1.TG-2000F can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
Technical Parameter
| Operating principle | eddy current |
| Measuring range | 0-1250um |
| Resolution | 0.1/1 |
| Accuracy | ±1-3%n or ±2.5um |
| Min. measuring area | 6mm |
| Min. sample thickness | 0.3mm |
| Battery indicator |
low battery indicator |
| Metric/ imperial | convertible |
| Power supply | 4x1.5V AAA(UM-4)battery Auto power off |
| Operating conditions | 0-+45℃(32℉-104℉),≤90%RH |
| Dimensions&weight | 126x65x27mm,81g(not including battery) |

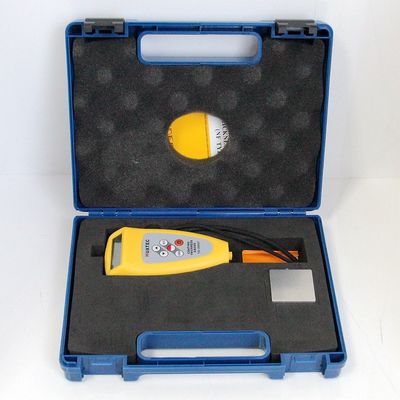

Standard Delivery
Main unit (1250um) 1
F type probe 1
F calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1
Optional Accessories
Cable and software for RS-232C
Customized testing range upto 3000 micron
