Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy phát hiện lỗi hạt từ tính | Người mẫu: | HCDX-2000 |
|---|---|---|---|
| Phương pháp từ hóa: | Từ hóa AC, từ hóa DC (HWDC/FWDC) | Dòng điện từ hóa: (AC): | 0 ～ 2000A |
| Vòng cuộn (không cần thiết): | đường kính bên trong φ 250mm, đường kính bên ngoài φ 380mm | Điện áp đầu vào: | 220V (một pha)/380V (ba pha) |
| Làm nổi bật: | MPI flaw detector 0-2000A,movable magnetic particle flaw detector,magnetic particle testing equipment with warranty |
||

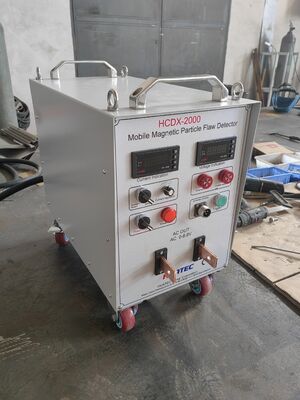

MPI Flaw Detector 0-2000A Movable Type Magnetic Particle Flaw Detector
*HCDX-2000 movable type magnetic particle flaw detector can conduct AC or DC magnetization for parts. It also has automatic demagnetization function, without additional demagnetization device.
*The instrument has its own roller, which is flexible and light. It is applicable to aviation, machinery, automobile, railway, ship, pressure vessel and other manufacturing industries. It can detect the whole, part and abnormal parts of the parts, and also make the large-sized workpieces magnetized locally in sections.
*The instrument adopts 8-bit single chip microcomputer as the control core, and realizes continuous regulation of magnetization and demagnetization current through accurate acquisition of AC zero crossing signal and current regulating switch signal. It supports the function of limiting the maximum value of magnetizing current to prevent the current from mistakenly adjusting and ablating the workpiece. It has power off phase control function, and the remanence is stable. It is suitable for continuous method and remanence method flaw detection.
*During automatic demagnetization, the instrument automatically attenuates from the current magnetizing current value to zero; The instrument uses silicon controlled rectifier to adjust its conduction angle to control the magnetizing and demagnetizing current, so as to realize contactless adjustment of large current and prolong the service life of the instrument.
*The instrument is equipped with supporting rod copper rod, which can be used for flaw detection by supporting rod method; The output cables can also be connected with each other and wound on the shaft workpiece for winding method flaw detection. In addition, additional magnetizing coils or simple supports can be configured according to user requirements to form a simple bed flaw detector for small workpiece detection.
Main functions:
Flaw detection method: strut method (direct electrification method), winding method, coil method
Magnetization method: AC magnetization, DC magnetization (HWDC/FWDC)
Demagnetization method: AC demagnetization adopts remote demagnetization (attenuation method), and DC demagnetization adopts ultra-low frequency demagnetization
Technical parameters:
| Magnetizing current | (AC): 0 ～ 2000A (effective value), continuously adjustable, with power off phase control (HWDC) 0-2000A (average) |
| Demagnetization | (AC/HWDC) 2000 ～ 0A |

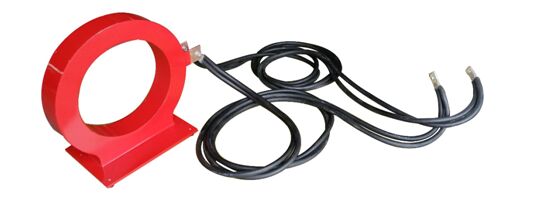

| Coil (optional) | inner diameter φ 250mm, outer diameter φ 380mm |
| Temporary load rate | 30% |
| Demagnetization time | <5s |
| Input voltage | 220V (single-phase)/380V (three-phase) |
| Frequency | 50Hz/60Hz |

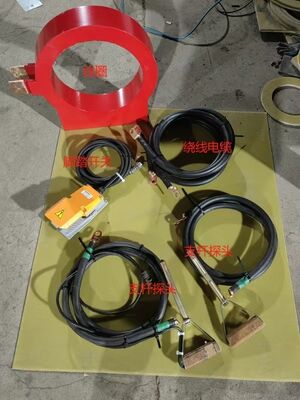

Standard configuration:
Movable magnetic particle flaw detector host 1
Pole probe 1 set
Output cable 1 set
Standard test piece 1 set
Foot switch 1 set
Manual, certificate, packing list and warranty card 1 set
Optional configuration:
Magnetizing coil
Wound cable
Simple water tank for recovery and utilization of magnetic suspension
Magnetic suspension spray recovery system
Ultraviolet light
Fluorescent magnetic particle
Shading room
