Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | 100-13000 m | Sử dụng môi trường: | Nhiệt độ: 0 ℃ -60, độ ẩm: 20% rh - 90% rh, sử dụng trong môi trường từ trường mạnh |
|---|---|---|---|
| Chất nền mỏng nhất: | 1mm | Độ chính xác của phép đo: | ± 3% H + 2μm |
| Nghị quyết: | 0,1μm /1μm /0,01mm | Diện tích cơ sở tối thiểu: | 32mm |
| Độ cong tối thiểu: | lồi 10 mm; lõm 16mm | ||
| Làm nổi bật: | magnetic coating thickness meter,fireproof coating thickness gauge,anti-corrosion coating tester |
||

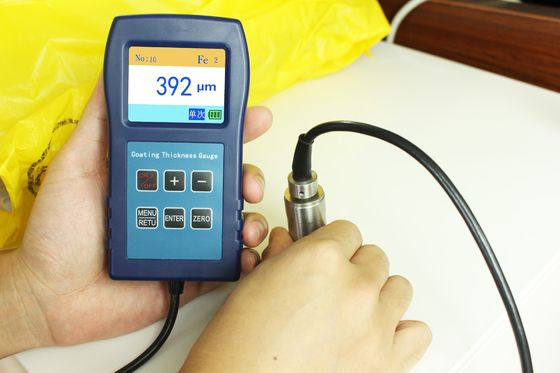

TG-6008 Magnetic Coating Thickness Meter for Fireproof & Anti-Corrosion Coating
General introduction
TG-6008 coating thickness gauge is a large-scale coating thickness gauge, mainly used to measure the thickness of magnetic metal material surface coating coating object professional non-destructive testing instrument. It adopts the principle of magnetic thickness measurement, which can quickly and non-destructively measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron) (galvanized, chromium, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coatings, anti-corrosion and fireproof coatings, etc.), which is very suitable for measuring ultra-thick anti-corrosion coatings on various large workpieces, with a range of up to 13MM, application field: widely used in coating industry, manufacturing, petroleum, chemical industry, shipbuilding, fire engineering, construction industry, commodity inspection and other testing fields
Technical parameters
Instrument features
Large range: 100-13000 μm (0.1-13mm)
Simple operation, fast test speed, good sensitivity and high measurement accuracy
Using alloy probe, wear-resistant and pressure-resistant, durable and accurate
There are two measurement methods: continuous measurement and single measurement
There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and number of measurements (No).
Mass storage, can be divided into 10 groups of storage, 200 in each group, a total of 2000 data can be stored
Store data view delete function
Three calibration methods: zero calibration, two-point calibration, and multi-point calibration
Upper and lower limit alarm function (can be set in single measurement mode)
The operation process is marked by a beep (in single measurement mode).
Automatic identification of ferrous and non-ferrous substrates
Metric conversion μm/Mil
Sunshine mode (used in strong light)
Chinese and English bilingual version
2.3-Inch large color screen with large font size display
Manual/automatic shutdown function
Bluetooth synchronous data transmission function (customized)
Standard configuration
1 Host TG-6008 √
2 Standard tablets √
3 Iron matrix √
4 Instruction manual √
5 Certificate of conformity √
6 Cleaning cloth √
Optional function
Bluetooth transmission function, customized
