Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | Tiêu chuẩn 0 ~ 1250μm (đầu dò F10 Max 10000μm, N3 0 ~ 3000μm, F3 0 ~ 3000μm) | Nghị quyết: | 0,1μm/1μm |
|---|---|---|---|
| Sự chính xác: | ±2%H+1μm Lưu ý: H là số đo độ dày | Trưng bày: | LCD 128x64 có đèn nền |
| Ký ức: | 5 tệp x 99 giá trị | Nhiệt độ làm việc: | Hoạt động tạm thời. : -10 ° C ~ 50 ° C Nhiệt độ lưu trữ. : -30 ° C-70 ° C. |
| Làm nổi bật: | portable paint thickness gauge with backlight,coating thickness gauge with data storage,paint thickness meter for non-destructive testing |
||

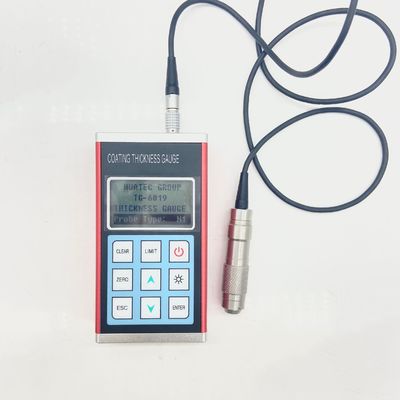

TG-6019 Portable Paint Coating Thickness Gauge with Data Storage & Backlight
MAIN FEATURE
*this model is capable to measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);
*Various probes optional, probe auto matching;
*Durable ruby probe, more wear and precise;
*Full metal shell design, sturdy, portable, high reliability;
*Alarm function when overrun the settable limiting range;
*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
*Large storage, easy to delete single or multiple saved values;
*PC software optional, convenient the data transmission, analysis, printing etc.
TECHNICAL DATA

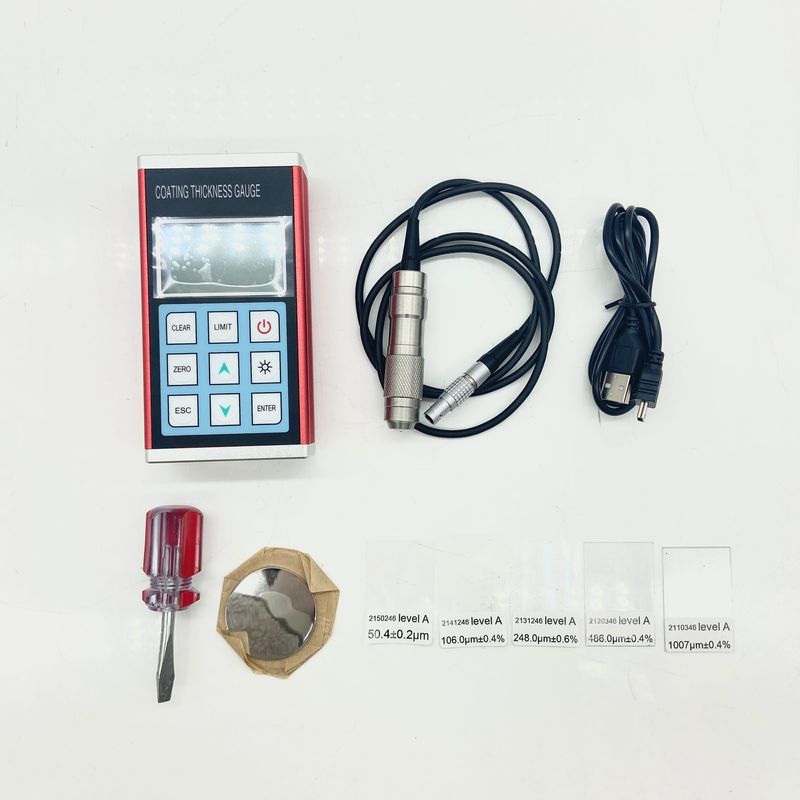

STANDARD DELIVERY
| ITEM | QTY |
| Main Unit | 1 PC |
| F1 or N1 Probe Optional | 1 PC |
| Standard Calibration Piece | 1 SET |
| Fe or NFe Substrate | 1 PC |
| User Manual | 1 PC |
| Instrument Case | 1 PC |
| Warranty | 2 Years |
