Thông tin chi tiết sản phẩm:
|
| tiêu chuẩn vật liệu: | ISO 10474-3.1.B,JIS G 0415-3.1.B | Độ sâu: | 100µm |
|---|---|---|---|
| Giá trị mục tiêu chiều rộng: | 0,5µm | tiêu chuẩn kiểm tra: | ISO 3452-3:1998(E),JB/T6064 |
| Làm nổi bật: | YM-B3 penetrant testing reference block,NDT sample block 100μm crack depth,non-destructive testing equipment with warranty |
||

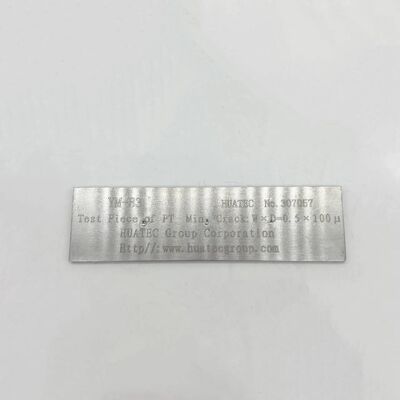

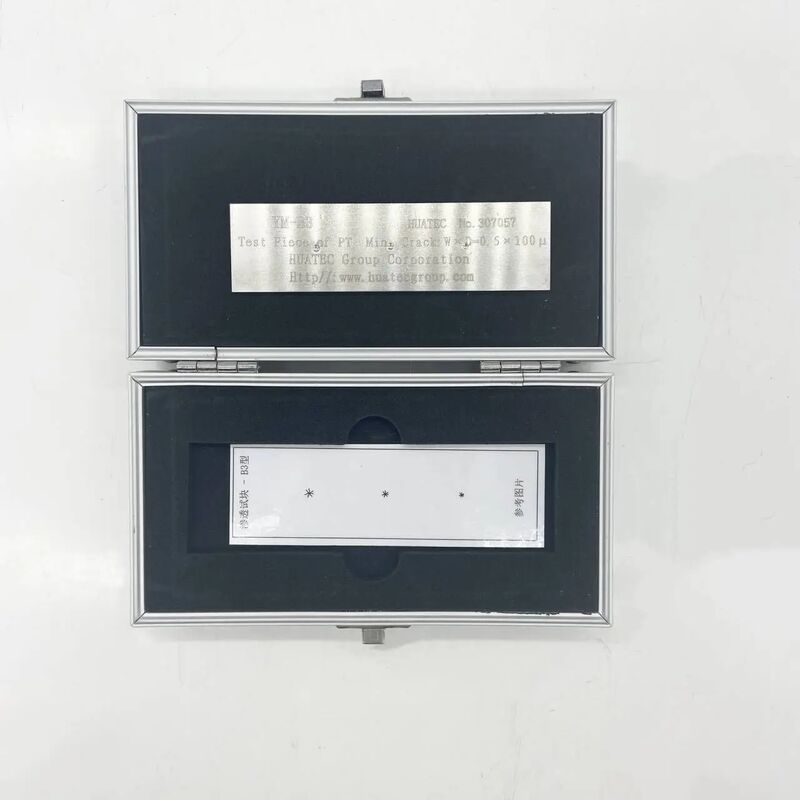

YM-B3 Penetrant Testing Reference Block 100μm Crack Depth NDT Sample
All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled
| Material standard | according to ISO 10474-3.1.B,JIS G 0415-3.1.B |
| Depth | 100µm |
| Width target value | 0.5µm |
| Test standard | ISO 3452-3:1998(E),JB/T6064 |
