Thông tin chi tiết sản phẩm:
|
| Độ nhạy: | Phim test chuẩn loại A1 15/100 rãnh hiển thị rõ nét, tốt hơn chuẩn quốc gia | Lực nâng: | AC ≥68,6N (7kg) |
|---|---|---|---|
| Khoảng cách cột thăm dò: | 60mm-205mm (phạm vi khoảng cách có thể điều chỉnh) | Nguồn sáng thăm dò: | white light illuminance ≥2000Lux; độ rọi ánh sáng trắng ≥2000Lux; Uv lamp irradianc |
| Thể tích thăm dò: | 200mm*48mm*158mm | Trọng lượng thăm dò: | 2,0kg |
| Làm nổi bật: | AC220V magnetic yoke UV lamp,handy yoke white lamp,non-destructive testing UV yoke |
||

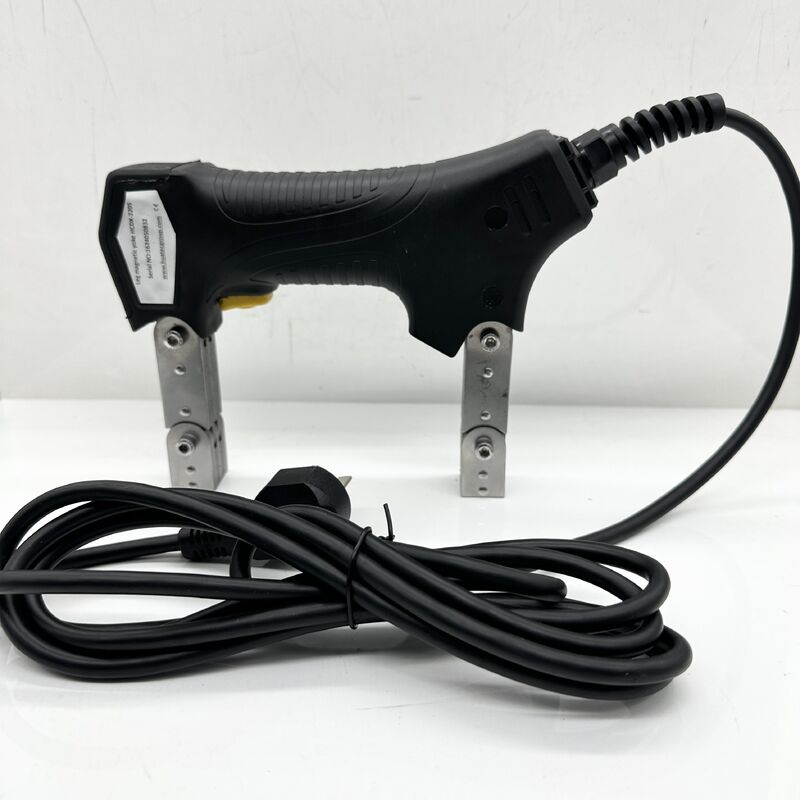

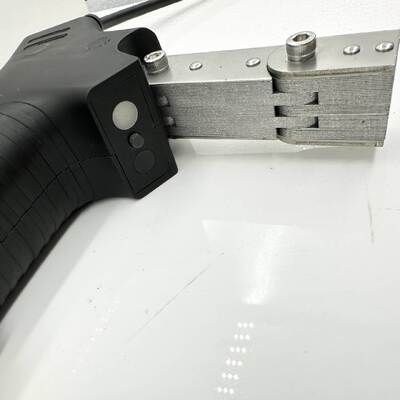

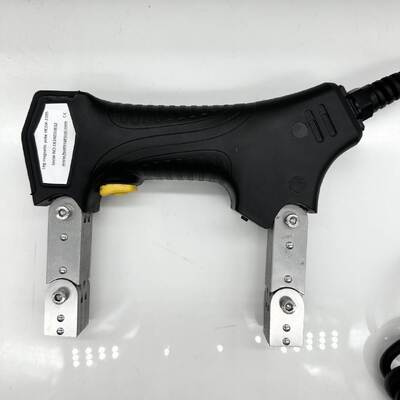

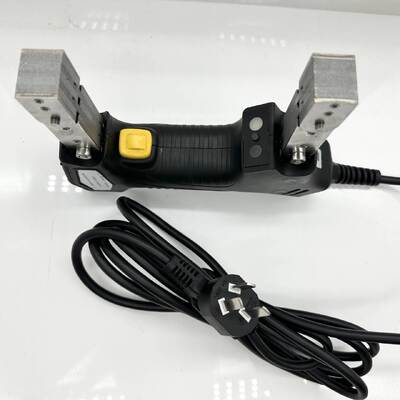

Leg Magnetic Yoke AC220V Handy AC Yoke UV lamp & White Lamp
Application
•Surface and subsurface testing for field testing
•Surface and subsurface for spot inspections
•Surface and subsurface for in-service inspections
•Surface and subsurface for demanding environments
•Surface and subsurface for weld inspection
Functional characteristics
1. AC working mode, the probe can be directly connected to the AC220V
power supply for flaw detection work;
2, The lamp is automatically lit when magnetized, the UV and white light
can be switched, and the fluorescent magnetic particle detection and
ordinary magnetic particle detection can be performed;
3, High sensitivity, strong lifting force, high flaw detection efficiency.
4. Duty time: 5 minutes on,1 minute off
5. Sealed, durable construction
Technical parameter
| Sensitivity | A1 type standard test film 15/100 grooves display clearly, better than the national standard |
| Lifting force | AC ≥68.6N (7kg) |
| Probe pole distance | 60mm-205mm (spacing range is adjustable) |
| Probe light source |
white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c㎡ |
| Probe volume | 200mm*48mm*158mm |
| Probe weight | 2.0kg |
Standards conform
• ASME BPVC
• ASTM E709
• ASTM E1444
• ASTM E3024
• ISO 9934-3
Configuration list
1, D type yoke 1 set (including 3 meters probe line)
2. 1 set of auxiliary tools
3, User manual, warranty card, certificate of 1
4, Instrument box
