Thông tin chi tiết sản phẩm:
|
| tham số: | vận tốc | Sự chính xác: | ±5% |
|---|---|---|---|
| Trưng bày: | LCD 3 1/2 chữ số | Nguồn điện: | hai pin nút (LR44 hoặc SR44) |
| Dung lượng pin: | Xấp xỉ. 4,5 giờ làm việc liên tục | Độ ẩm: | <85% |
| Làm nổi bật: | pen type vibration meter,motor failure detecting meter,velocity vibration testing equipment |
||

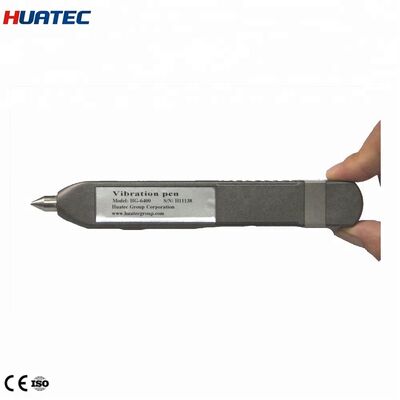

Pen Type Vibration Meter Motor Failure Detecting Velocity Vibration
Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine
tools and so on.
·Compact size, small weight, easy handling
·Prompt testing of vibration on the workshop machines
·For quick checking of unbalance misalignment, bearings and gears
·Guard against mechanical malfunction
·Holding tested value for 40 seconds
·Automatic switch off after 40 seconds
Technical Specifications:
| Parameter | Velocity |
|
Testing range |
Velocity: 0.1mm/s-199.9 mm/s(RMS) |
|
Frequency range |
Velocity: 10Hz ~ 1kHz |
| Accuracy | ±5% |
| Display | 3 1/2 digits LCD |
| Power supply | two button batteries(LR44 or SR44) |
| Battery capacity | Approx. 4.5 hours working continuously |
| Operating temperature | 0℃ ~ 40℃ |
| Humidity | <85% |
| Dimension | 150mm×22mm×15mm |
Standard delivery
• Main unit
• Battery
• Protection pocket
• Certificate

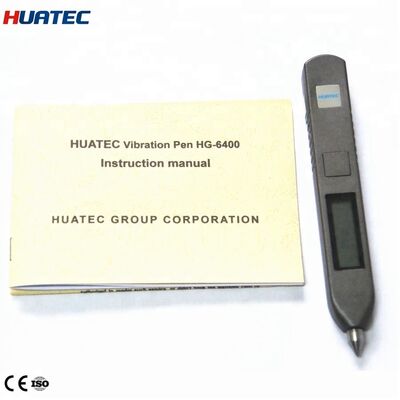

• Instruction manual
• Warranty card
