Thông tin chi tiết sản phẩm:
|
| Hiển thị phạm vi: | 0 ~ 100HAM | Phạm vi đo: | 20~90HAM |
|---|---|---|---|
| Thích hợp cho đường kính vòng loại O: | 5-80mm | Nghị quyết: | 0,1H |
| Sự chính xác: | ≤±1H | Lực lò xo: | 33.04-77.91gf |
| Bấm kim đột quỵ: | 1.25mm | ||
| Làm nổi bật: | Shore AM digital hardness tester,HT-6520AM rubber hardness tester,plastic hardness tester with warranty |
||

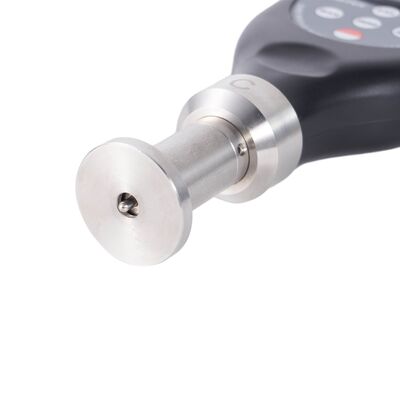

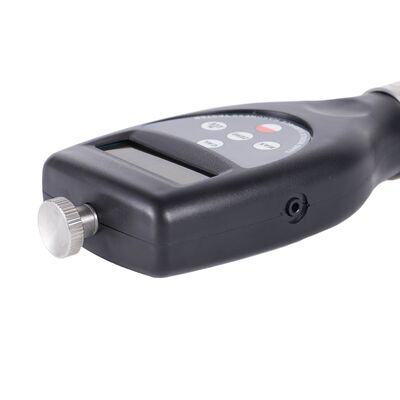

HT-6520AM Shore AM Digital Hardness Tester 20-90HAM for Thin Rubber & Plastic
Application
Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics
Specification
|
Parameters |
Tested Result/Average Value/Max.Value |
|
Display |
4 bits 10mm |
|
Display Range |
0~100HAM |
|
Measurement Range |
20~90HAM |
|
Suitable for type O ring diameter |
5-80mm |
|
Resolution |
0.1H |
|
Accuracy |
≤±1H |
|
Spring Force |
33.04-77.91gf |
|
Press needle stroke |
1.25mm |
|
Battery Indicator |
Low Battery Indicator |
|
Auto Switch Off |
√ |
|
Operating Conditions |
Temp:0~40ºC Humidity:10~90%RH |
|
Power Supply |
4x1.5V AAA Size(UM-4)Battery |
|
Dimensions |
176x65x27mm |
|
Weight |
490g |
|
Standard |
Main Unit |
|
Accessories |
Carrying Case |
|
Operation Manual |
|
|
Optional Accessories |
USB Data Cable with Software |
|
Blue tooth Data Adapter with Software |
Features
* AM Shore Hardness tester/Thin rubber hardness tester, suitable for determining the hardness of ordinary vulcanized rubber and its analogues sample (thickness above 1.5mm) of the product, measured hardness values in Shore AM hardness of 20HAM (degree) to 90HAM (degree).
* The rubber. Implementation standard: GB/T 531.1-2008 "vulcanized rubber or thermoplastic rubber pressed into the hardness tester Method Part I:Shore hardness tester method (Shore hardness),the national standard is equivalent to the international standard ISO 7619-1-2004.
* It meets standards: DIN 53505, ISO 868, ISO7619, ASTM D 2240, JIS K7215.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.
* Digital display gives exact reading without guessing or errors.
* Can communicate with PC for recording, printing and analyzing by the optional software and cable for RS232C and or USB interface.
* Automatic power off to conserve power.
* Use operation stand of optional parts can get good accuracy and repetitiveness due to constant measurement force to eliminate the errors caused by artificially applied different force
