Thông tin chi tiết sản phẩm:
|
| Phạm vi tỷ lệ liều: | 1nSv/h~100mSv/h | Phạm vi đo tốc độ đếm: | 0-106 CPS |
|---|---|---|---|
| Phạm vi liều tích lũy: | 0-999999mSv | Dải năng lượng tia alpha: | 2,6 MeV trở lên |
| Phạm vi năng lượng tia beta: | 100 keV trở lên | Phạm vi năng lượng X và gamma: | 10 keV~3 MeV |
| Làm nổi bật: | high sensitivity radiation detector,multi-radiation detector for environmental testing,building material radiation testing equipment |
||

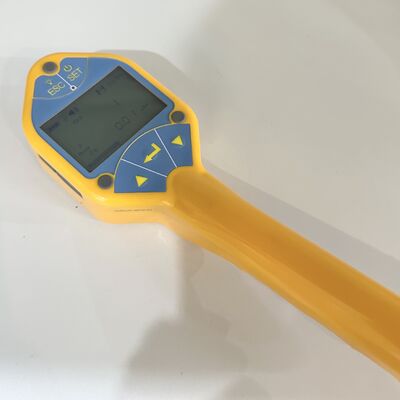

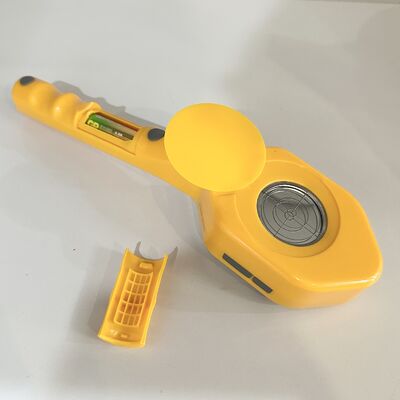

FJ-1015 Multi-Radiation Detector High Sensitivity for Environmental & Building Material Test
FJ-1015 multi-function radiation patrol instrument can detect five kinds of radiation, such as alpha, beta, X, gamma and neutron. It can measure environmental radiation level and surface contamination. It can also select carbon fiber extension rod and ultra-large dose radiation probe. It is the best choice for rapid response and nuclear emergency.
Typical configuration technical parameters:
| Main Detector (1015 Detector) | Saint-Gobain Cake GM Detector |
|
Detector area |
15.69cm 2 |
| Dose rate range | 1nSv/h~100mSv/h |
| Measurement range of counting rate |
0-106 CPS |
| Cumulative dose range |
0-999999mSv |
| Sensitivity | 3500 CPM/mR/h (for Cs-137) |
| Alpha-ray energy range | 2.6 MeV and above |
| Beta-ray energy range | 100 keV and above |
| X and gamma energy range | 10 keV~3 MeV |
| Data storage space | 4G |
| Shell Material |
Yellow ABS |
| Power-on working hours | > 72 hours |
| Relative basic error | +10% |
| Display units |
mu Sv/h, mSv/h, mR/h, mu Gy/h, mGy/h, cps, cpm, mSv |
| Threshold Setting | Regular 3-fold Continuous Adjustment from Background |
| Alarm items |
over-threshold alarm, detector fault alarm, low-power alarm, over-range alarm |
| Alarm mode |
Acousto-optic alarm and vibration alarm can be combined arbitrarily |
| Self-protection |
Over-threshold Self-protection |
| Display |
color display screen, all data display on the same screen, with backlight function |
| Expansibility |
With external fast plug, the probe can be expanded quickly |
| Emergency |
Start up for 1 second without preheating; alarm within 5 seconds of exceeding threshold |
| Packaging Protection Level |
IP65 |
| Temperature range |
- 20 ~60 ~ Humidity range: <98% (40 C)
|
| Weight |
host about 340g |
Recommended applications:
environmental monitoring (nuclear safety), radiation hygiene monitoring (disease control, nuclear medicine), homeland safety monitoring (entry and exit, customs), public safety monitoring (public security), nuclear power plant, laboratory and nuclear technology applications, etc., but also applicable to radioactive detection of waste metals in renewable resources industry and families. Inspection of decoration building materials.
Hardware configuration
1.Imported Saint-Gobain Cake Detector
2.High Strength ABS Shell
3.Large-screen LCD
4.4G Large Capacity SD Card (Storing 100,000 Groups of Data)
5.Patented High Voltage Circuit Module
6.Patented Energy-saving Circuit Module
7.485 Fast Interpolation Interface
8.Connect Spring Data Line with Expanded Probe
9.USB interface
10.On-line USB Data Line with PC
11.Data Analysis CD-ROM for PC
12.5# Battery 2 Section
