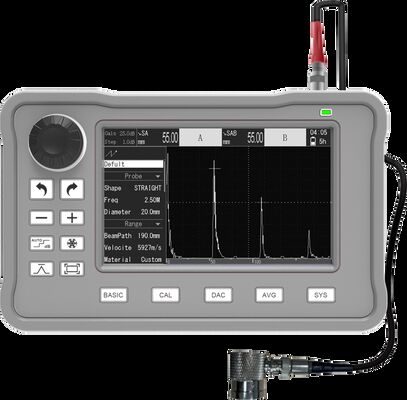

FD-500mini Portable Metal Defect Detector with DAC/AVG Function for Industrial NDT

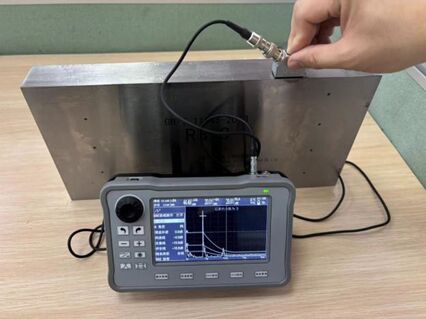

FD-500mini ultrasonic flaw detector is an ultra-small, portable measuring instrument that can measure the thickness of metal or magnetically permeable materials, detect internal defects (cracks, inclusions, pores, etc.) and automatically locate, evaluate and diagnose.It is widely used in test laboratory, special inspection institute, shipbuilding, oil and gas equipment, aerospace, chemical industry, electric power, steel, metallurgy, railroad, automobile manufacturing, machinery, boiler pressure vessel, special equipment, petroleum pipeline, construction industry, mold manufacturing and other industries.
Product technical parameters
|
Bandwidth |
0.1MHz～20MHz |
|
Gain |
120dB, pace 0.1dB, 0.6dB, 1dB, 2dB, 6dB |
|
Wave filter |
Broadband, 1M, 1.25M, 2.5M, 5M, 10M, 15M, 1M-5M |
|
Sampling rate |
Hardware sampling rate 100MSPS, equivalent sampling rate 400MSPS |
|
Detection mode |
Full wave, positive half wave, negative half wave, RF, envelope |
|
Detection range |
10m (longitudinal wave carbon steel) , pace 100mm,10mm,0.1mm |
|
Pulse mode |
Sharp pulse, square wave, dual-square wave |
|
Pulse voltage |
25V～300V Stepping 25V |
|
Pulse width |
0ns～500ns continuously adjustable, 5ns pace |
|
Damping |
Strong (100Ω) ,weak (1000Ω) adjustable |
|
Pulse repetition frequency |
Automatic or manual, auto Scope (200Hz-1KHz), manual scope (0-10KHz) |
|
Probe channel |
200 groups, supporting operations such as creating, previewing, deleting, renaming, overwriting, and restoring |
|
Gate alarm |
Gate A and B alarm, lost wave/incoming wave |
|
Gate mode |
Independent gate A, gate B |
|
Measurement mode |
Peak, Front edge, J Front edge |
|
Quantitative mode |
DAC curve, AVG(DGS) curve |
|
Flaw detection standards |
AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345 |
|
Save content |
Single-frame, multi-frame recording (≤500 frames), screenshots, B-scan screenshots |
|
Auxiliary functions |
automatic gain, peak memory, waveform freezing, channel management, gate alarm, gate expansion, automatic gate, full screen touch, virtual keyboard, color half span, quick screenshot |
|
Display screen |
High definition 5.0-inch 800×480 LCD, IPS_LCD |
|
Probe interface |
Dual LEMO-00 |
|
Output interface |
Type-C1, MINI USB |
|
B-scan imaging |
support up to 700 groups of A-scan synthesis, and the highest resolution is φ2mm |
|
Data storage |
8GB SD card |
|
Charger |
PD fast charging, standard Type-C interface(100～240V, 50～60Hz) |
|
Size |
183mm×113mm×45mm |
|
Weight |
700g, includes battery without rubber boot |
|
Language |
English |
|
Unit |
Metric,imperial |
|
Battery |
7.4V 8000mAh Lithium battery, 12 hours of battery life |
|
Operating temperature |
-10℃～55℃ |
|
Resolution |
40dB (Metrological performance requirements:≥26dB) |
|
Dynamic range |
32dB (Metrological performance requirements:≥26dB) |
|
Sensitivity margin |
50dB (Metrological performance requirements:≥42dB) |
|
Vertical linearity |
1.8% (Metrological performance requirements:≤6%) |
|
Horizontal linearity |
0.5% (Metrological performance requirements:≤2%) |
Features
l The body is lightweight and suitable for one-handed operation.
l PD65W fast charge + 12 hours long battery life.
l 5.0-inch IPS high-definition display with a brand new UI interface.
l Support full-screen touch, quick gesture operation, virtual keyboard, easy to use
l With DAC, AVG, automatic gain, peak memory, color half-span and other professional functions.
l Including Chinese and English switching, data export to SD card, online upgrade, screen capture and many other practical functions.
Standard configuration
|
Number |
Name |
Quantity |
Note |
|
1 |
host |
1 |
|
|
2 |
high-precision straight probe |
1 |
2.5MHz Φ20 |
|
3 |
high-precision angle probe |
1 |
2.5MHz 10x10 K2 |
|
4 |
probe line |
1 |
|
|
5 |
PD65W charger |
1 |
|
|
6 |
power line |
1 |
|
|
7 |
instructions |
1 |
|
|
8 |
Certificate of conformity |
1 |
|
|
9 |
warranty card |
1 |
|
|
10 |
SD card (8G) |
1 |
|
|
11 |
Adapter plug (C to USB) |
1 |
Can be connected to a PC to export data |
Optional Configurations
|
Number |
Name |
Quantity |
Note |
|
1 |
Power bank |
1 |
Battery capacity: 20000mAh/7.4V;74Wh |
|
2 |
SD card(16G,32G,64G) |
1 |
|
