Thông tin chi tiết sản phẩm:
|
| Phạm vi: | 0,1~80%Fe , ( 0,1~110)số WRC | Độ chính xác: | ±2%(raneg0.1~30%Fe), ±3%(raneg30~80%Fe) |
|---|---|---|---|
| Nhiệt độ hoạt động: | 5 ~ 40℃ | Pin: | 9v6F22 |
| Kích cỡ: | LX WX H 175X100X38mm | ||
| Làm nổi bật: | Portable ferrite content tester,Dual unit weld tester,Austenitic steel welding tester |
||
| Attribute | Value |
|---|---|
| Range | 0.1~80%Fe , (0.1~110)WRC-number |
| Precision | ±2%(range 0.1~30%Fe), ±3%(range 30~80% Fe) |
| Operating temperature | 5 ~ 40℃ |
| Batteries | 9v 6F22 |
| Size | L x W x H 175 x 100 x 38mm |

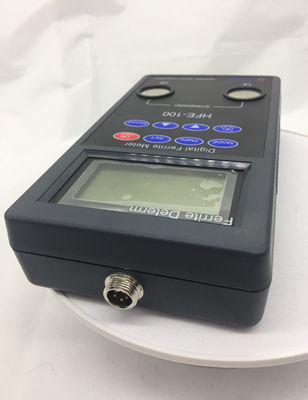

The HFE-100 Digital Portable Ferrite Content Testing Instrument is designed for accurate ferrite content measurements on welded seams and cladding items in industrial applications.
In the chemical industry, stress-bearing members of containers, pipes, reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel. The residual ferrite content must be within a specific range compatible with the mechanical strength requirements.
The meter is mainly used for the determination of the ferrite content of welded austenitic steel or Duplex or cladding of austenitic chromium-nickel steel weld.

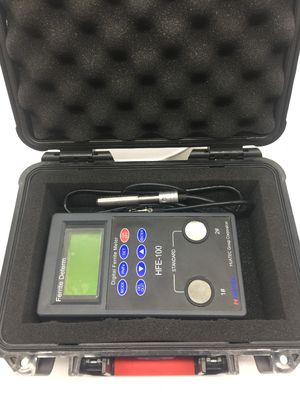

| Accessories | Main unit, probe, two calibration sample pieces, carrying-case, operating manual, certificate. |
Probes are very sensitive elements. During measurement, they should be gently placed on the sample. Please note:
