Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | Phạm vi lực: 0-10.000KN Phạm vi giá trị mpa: Khối 10 mm 0-127,38MPa Khối 14mm 0-64,99 MPa Khối 20 mm | Chế độ hiển thị: | Buộc chuyển đổi giá trị và cường độ bằng một phím |
|---|---|---|---|
| Nghị quyết: | 0,001KN 0,001 MPa | Sự chính xác: | ±1% |
| Phương pháp sạc: | Pin sạc dung lượng cao 2000mAh | ||
| Làm nổi bật: | handheld pull off adhesion tester,self-positioning spindle adhesion tester,high precision non destructive tester |
||

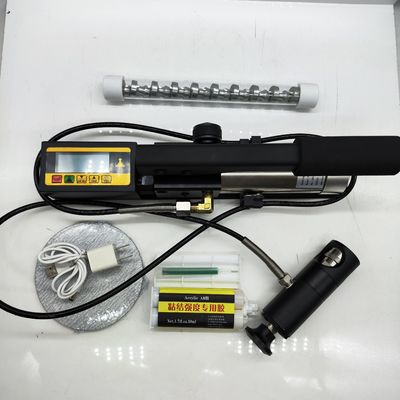

HKSM-1 Handheld Pull Off Adhesion Tester with Self-positioning Spindle High Precision
Application field
HKSM-1 puller adhesion tester can measure the adhesion of metal, paint, spray, waterproof material, adhesive, chrome plating, nickel plating, concrete and other material coatings. The working principle of the instrument is to use the hydraulic system to measure the adhesion of the coating of a certain diameter on the surface of the matrix. The multifunctional digital display of the tester shows the size of the adhesion, with MPa or KN as the unit of display. Digital display, the test results are intuitive and reliable. Different from the marking device, the error of human observation is reduced. The product according to international and national standards design and manufacturing, leading technology, stable performance
Instrument parameter
|
Instrument structure |
one-piece |
|
Display mode |
Force value and strength switch with one key |
|
Measuring range |
Force range: 0-10.000KN Range of mpa values: 10mm block 0-127.38MPa 14mm block 0-64.99 MPa 20mm block 0-31.84 MPa 50mm block 0-5.09 MPa |
|
resolution |
0.001K N 0.001 MPa |
|
accuracy |
±1% |
|
Peak retention |
yes |
|
Liquid crystal lighting |
yes |
|
Charging mode |
2000mAh High capacity rechargeable battery |
|
Automatic shutdown |
yes |
|
Main material |
Light alloy |
Instrument characteristics:
1, portable handheld instrument, can be used anywhere, no external power supply - can be used in the laboratory, can be used in the field.
2, large and easy to read LCD digital display
3. Press the button to select the spindle size, measuring unit and storage data, and calculate the result automatically according to the spindle size.
4, portable instrument box with alloy and stainless steel body, rain proof, dust proof, anti-impact.
5, high quality hydraulic pump can be used in any occasion, warranty for three years.
6, the pressure and display system are calibrated by the standard dynamometer, the accuracy is controlled within ±1%(full scale).
7, self-positioning spindle, smooth and rough surface has no effect on the measurement results.
8, high-grade industrial pressure sensor to ensure continuous high precision.
9, optional 10mm, 14mm, 20mm and 50mm spindle.
10, LCD liquid crystal display, you can choose MPa or KN unit.
Conforming standard
*ISO 4624 Paints and varnishes Pull-offtest for adhesion
*ASTM D 4541 StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers
*ASTM D7234 Standard Test Method for Pull-Off Adhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers
*GB/T 5210-2006 "color paint and varnish pulling method adhesion test"
TB-T2965-2011 "Railway Concrete bridge deck waterproof layer Technical Conditions"

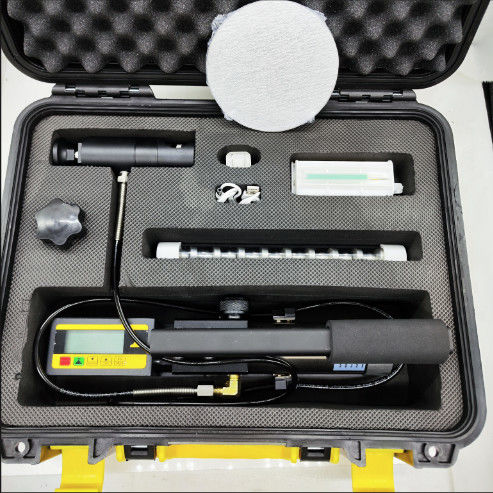

Product configuration:
1. A digital display manual pump
2. Quickly pull out one sleeve
3. A charger
4.20mm spindle ten
5. One cutter
6. Grinding pad six pieces
7. A set of adhesives
8. One copy of certificate, warranty card and manual
9. A portable instrument case
