Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Màn hình X-ray | Thương hiệu: | HUATEC |
|---|---|---|---|
| Kích cỡ: | 100x240,100x400,100x480, v.v. | độ dày: | 0,125mm |
| Làm nổi bật: | industrial X-ray lead screen,NDT lead screen with warranty,X-ray screen different sizes |
||

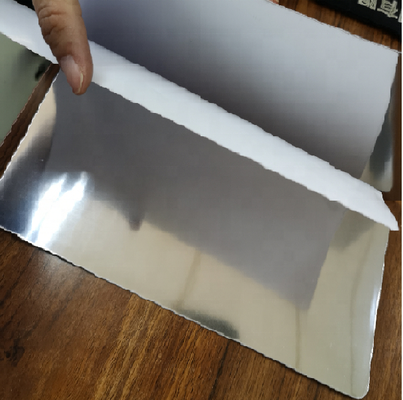

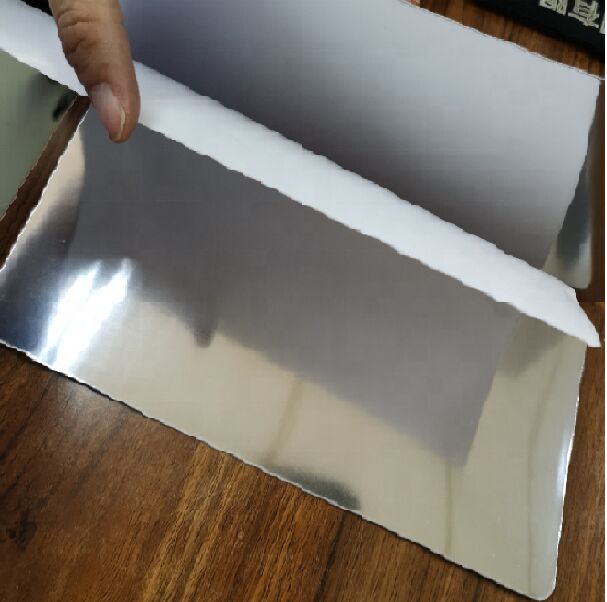

HUATEC NDT Industrial X Ray Lead Screen with Different Size
Product Name: Lead Intensifying Screen
Features
1. The intensifying screen can increase the sensitivity to make the film clearer;
2. The paper quality is reliable, the raw materials are imported, and the paper density is high;
3.Applied in the fields of pressure pipes, pressure vessels, petroleum and petrochemicals, and non-destructive
testing of steel structures;
4. Can be customized according to customer requirements;
Accessories for X Ray flaw detector
Huatec's lead screens are available in the following sizes and can also be customized according to customer requirements.
Including right angles and rounded corners
HUATEC Lead Screen can come with film protection
| Lead screen | 100x120x0.03mm |
| Lead screen | 100x200x0.03mm |
| Lead screen | 100x240x0.03mm |
| Lead screen | 100x480x0.03mm |
| Lead screen | 80.5x300.5x0.1mm |
| Lead screen | 85x305x0.1mm |
| Lead screen | 80.5x150x0.1mm |
| Lead screen | 100x120x0.1mm |
| Lead screen | 100x200x0.1mm |
| Lead screen | 100x240x0.1mm |
| Lead screen | 180x240x0.1mm |
| Lead screen | 100x400x0.1mm |
| Lead screen | 100x480x0.1mm |
| Lead screen | 240x300x0.1mm |
| Lead screen | 350x430x0.1mm |
| Lead screen | 100x200x0.2mm |
| Lead screen | 100x400x0.2mm |
| Lead screen | 100x200x0.125mm |
| Lead screen | 100x240x0.125mm |
| Lead screen | 100x240x0.5mm |
| Lead screen | 180x240x0.5mm |
| Lead screen | 240x300x0.5mm |
| Lead screen | 100x480x0.5mm |
| Lead screen | 350x430x0.5mm |
| Lead screen | 100x254x0.125mm (4"x10"x0.125mm) |
| Lead screen | 100x381x0.125mm (4"x15"x0.125mm) |
| Lead screen | 100x400x0.125mm |
| Lead screen | 100x480x0.125mm |
| Lead screen | 150x400x0.125mm |
| Lead screen | 180x430x0.125mm |
| Lead screen | 89x430x0.127mm (3.5"x17"x0.005“) |
| Lead screen | 115x430x0.127mm (4.5"x17"x0.005“) |
| Lead screen | 89x430x0.254mm (3.5"x17"x0.010”) |
| Lead screen | 115x430x0.254mm (4.5"x17"x0.010“) |
| Lead screen | 14"x17"x0.125mm |

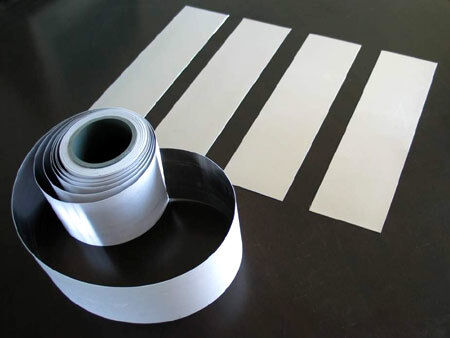

| Lead screen roll | W80mm X T0.03mmX 5 meters |
| Lead screen roll | W80mm X T0.03mmX 10 meters |
| Lead screen roll | W80mm X T0.03mmX 15 meters |
