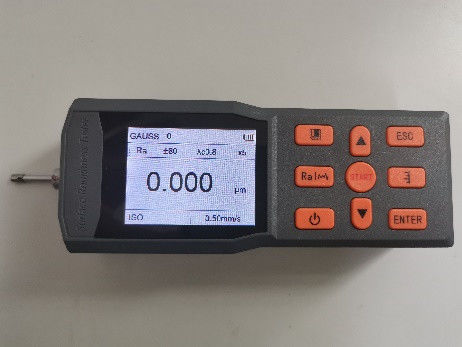

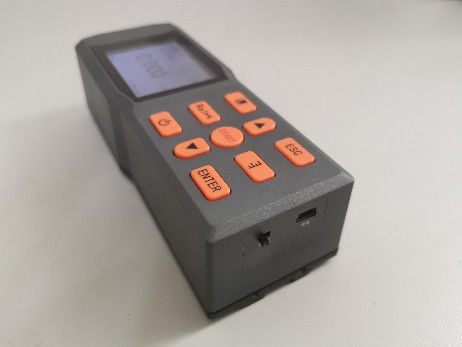

SRT-6450 Portable Surface Roughness Gauge 200μm Range Color Screen 100 Groups Data Storage

SRT-6450 Portable Surface Roughness Gauge 200μm Range Color Screen 100 Groups Data Storage

1.Product Overview

This surface roughness measuring instrument is a handheld device suitable for production site environments and mobile measurement needs. It can measure the surface roughness of various machined parts, calculate the corresponding parameters based on the selected measurement conditions, and display all measurement parameters and contour graphics on the display. This instrument can measure the main parameters of the latest international standards and fully and strictly adheres to international standards. The measurement parameters comply with the national standard GB/T3505 "Product Geometric Technical Specifications - Terminology, Definitions and Surface Structure Parameters of Surface Structure Contour Method" and are compatible with the standards of the United States, Germany, Japan, the United Kingdom and other countries. It is applicable to various machined parts, mechanical processing manufacturing industries, inspection, commodity inspection and other departments, especially suitable for on-site inspection of large workpieces and production lines, as well as external verification by inspection, metrology, commodity inspection and other departments, without causing damage to the workpieces.

Measurable workpiece range: plane, outer circular surface, conical surface, inner hole, groove, curved surface, etc. (Special surfaces need to be measured with suitable sensors).

2. Technical parameters

3. Functional Features

*It features an integrated mechanical and electrical design, is compact in size, light in weight and easy to use.

*The ARM+DSP chip is adopted for control and data processing, featuring high speed and low power consumption.

*Multi-parameter Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku.

*A large measurement range of 200μm.

*320*240 color screen display, digital/graphic display; Highlight without viewing Angle;

*The display is rich in information, intuitive and can show all parameters and graphics.

*Compatible with multiple national standards such as GB, ISO, DIN, ANSI and JIS;

*It is equipped with a built-in lithium-ion rechargeable battery and charging control circuit, featuring high capacity and no memory effect.

*There is an icon indicating the remaining battery power to prompt users to charge in time.

*It can display the charging process instructions, allowing the operator to know the charging level at any time.

*The continuous working time is more than 8 hours;

*Super-capacity data storage, capable of storing 100 sets of raw data;

*Recording and storage of measured data;

*Reliable anti-motor stalling circuit and software design;

*Display measurement information, menu prompt information, and various prompt and explanatory information such as power on/off.

*Ergonomic shell design, sturdy, compact, portable and highly reliable;

*It can be connected to a computer for real-time data and historical data transmission.

*The calibration sample blocks adopt optical glass substrates, which feature high precision, are not easily scratched and have a long service life.

*Optional accessories include curved surface sensors, small hole sensors, deep groove sensors, measurement platforms, sensor sheaths, extension rods, etc.
