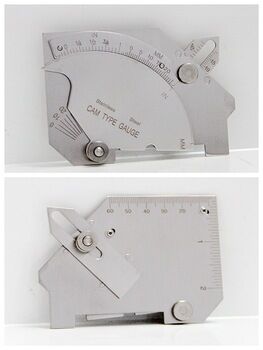

Simple to use all in one welding gauge for measuring Weld: Undercut, Excess material, Fillets, Weld size and Height, Preparation angle and Misalignment.

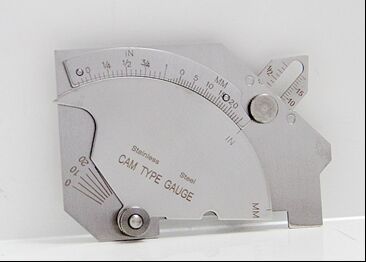

Adjustable scale to compensate for point wear. The ROK bridge cam welding gauge is versatile instrument for welding inspection, for it can measure at least 7 type of welded surfaces and joints.  It displays measurements in both inches and millimeters (linear measurements up to 60 mm or 2 in.). The gauge is easy to use. It is comprised of one rotating dial and one sliding pointer. You simply move ROK dial or pointer until it makes the appropriate contact and then read the result. Move the dial or pointer until it makes the appropriate contact and then read the result. Welding Inspector can use ROk gauge together to get correct measuring result to assess the quality of welding joints.

Specification:

 Packed with manual, an illustrated sheet showing the parts of the gauge as well as procedure for measuring different weld parameters

It can measure:

    Excess weld metal (capping size)

    Depth of undercut

    Depth of pitting

    Fillet weld throat size

    Fillet leg length

    Crown Height

    Root Face & Root Gap

   It displays measurements in both inches and millimeters (linear measurements up to 60 mm or 2 in.). The gauge is easy to use. It is comprised of one rotating dial and one sliding pointer. You simply move the dial or pointer until it makes the appropriate contact and then read the result.
