Thông tin chi tiết sản phẩm:
|
| Định vị chính xác: | ±5% độ sâu (không bị nhiễu từ các đường ống lân cận) | Độ chính xác đo độ sâu: | ±5% độ sâu (không bị nhiễu từ các đường ống lân cận) |
|---|---|---|---|
| Độ chính xác đo lường hiện tại: | ±5% dòng điện thực tế (không bị nhiễu từ các đường ống lân cận) | Phạm vi đo độ sâu: | < 6 mét |
| Tần số làm việc: | 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz | Nhiệt độ hoạt động: | -20 đến +50 |
| Công suất đầu ra: | 10W | ||
| Làm nổi bật: | professional underground pipeline locator,HD-18A pipeline depth measurement,underground pipe position detector |
||

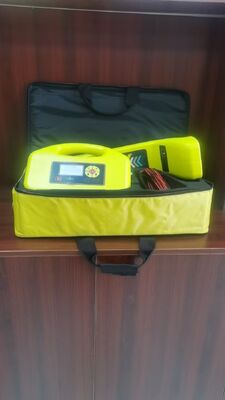

HD-18A Professional Underground Pipeline Locator with Accurate Depth and Position Measurement
HD-18A underground pipeline detector is meticulously developed by a domestic professional research team. It integrates advanced technologies such as ultra-narrow band filters, and possesses outstanding detection capabilities including strong anti-interference ability, precise positioning and depth measurement. It is suitable for the detection and patrol of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, power supply and other departments. It is one of the essential instruments for pipeline maintenance units.
Technical Specifications:
|
(1) Receiver |
Positioning accuracy: ±5% of depth (without interference from adjacent pipelines) Depth measurement accuracy: ±5% of depth (without interference from adjacent pipelines) Current measurement accuracy: ±5% of actual current (without interference from adjacent pipelines) Depth measurement range: < 6 meters Working modes: Valley mode, Peak mode, Wide Peak mode, Peak Arrow mode Working frequency: 50Hz, 512Hz, 1KHz, 33KHz, 83KHz Menu settings: Chinese and English setting menu. Operating temperature: -20℃ to +50℃ Battery: 7.4V lithium battery Dimensions: 595mm × 136mm × 238mm Weight: 1.6Kg (including battery) |
|
(2) Transmitter |
Output power: 10W Working frequency: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz Working mode: Automatic conversion among direct connection, induction and clamp modes Battery: Built-in 14.8V lithium battery pack Operating temperature: -20℃ to +50℃ Dimensions: 348mm × 228mm × 84mm Weight: 2.5Kg (including battery) |
Product Features:
1. Utilizing a 10W wideband transmitter, it can be used for detection in various environments.
2. Both the receiver and the transmitter are powered by lithium battery packs, which is energy-saving and has an extremely long working time.
3. The display has backlighting function, which can be used for emergency rescue at night.
4. It has left and right arrow displays, enabling quick positioning of the pipeline location.

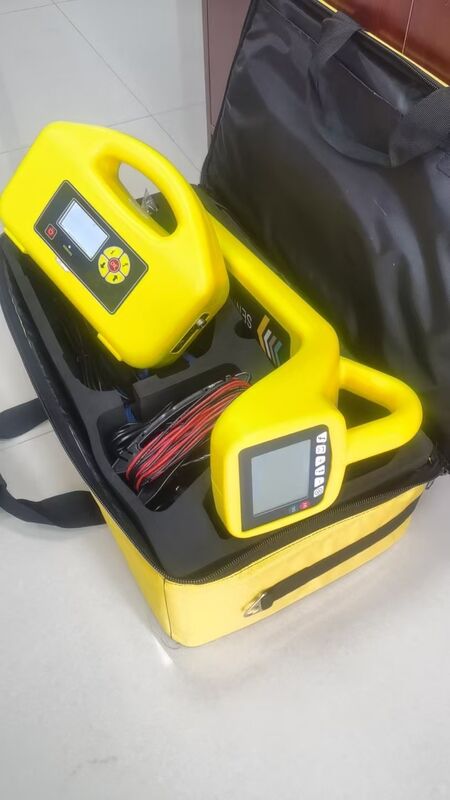

Main accessory configuration :
(1) Standard configuration
One HUATEC HD-18A receiver;
One HUATEC HD-18A transmitter;
One induction clamp;
One output cable;
One grounding rod;
Two chargers;
One connecting magnet;
One 220V power cord;
One user manual;
One instrument packaging bag.
One HUATEC calibration certificate.
