Thông tin chi tiết sản phẩm:
|
| Tên: | Khối xuyên thấu loại I ISO 3452-3 | sử dụng: | Dùng để xác định mức độ nhạy cảm của dòng sản phẩm thẩm thấu |
|---|---|---|---|
| Ứng dụng: | Kiểm tra DNT công nghiệp | Bảo hành: | 12 tháng |
| Làm nổi bật: | ISO 3452-3 Type 1 reference block,NDT reference block for testing,Type 1 penetrant testing block |
||

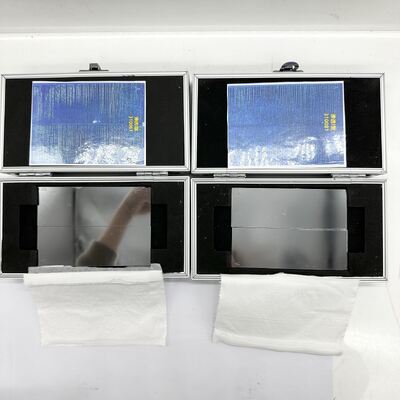

ISO 3452-3 Type 1 reference block
Twin NiCr Sensitivity Panels,NiCr Twin Cracked Penetrant Test Panels
ISO 3452-1 Type 1 Test Panel
The NiCr Twin Cracked Penetrant Test Panels are used for comparing and evaluating sensitivity and performance of Dye Penetrants.
They are available in 10, 20, 30 and 50 microns (0.0004, 0.0008, 0.0012, 0.002 inch) flaw depth.

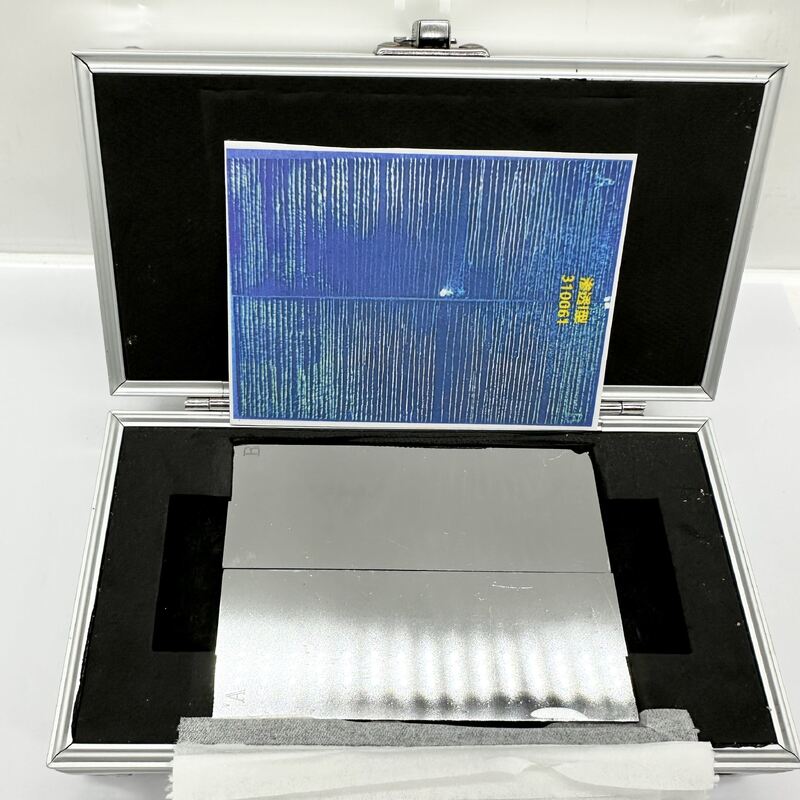

Each set consists of a pair of identical panels marked A and B with manufacturer`s certification and crack photograph.
These panels are made by plating hard Nickel Chromium alloy on a 2mm thick brass substrate and stressing the panel in tension. The hard NiCr is brittle in comparison to the brass substrate so that the cracks created in the plated layer are limited to the thickness of the layer. The panel is then cut in half perpendicular to the direction of the cracks thus creating a matching pair of virtually identical cracks of controlled depth.
NiCr Panels are used to compare new and used penetrants and can also be used for comparing performance of different penetrant materials or different processing techniques.
|
Sensitivity* (unofficial) |
Fluorescent Penetrant Sensitivity Levels are established by the USAF Laboratory under highly controlled conditions. Sensitivity testing is not something the penetrant manufacturer or user can do. What you can do is compare samples using appropriate NiCr Cracked Panels. |
|
|
Crack Depth |
Level |
|
|
50 μm |
1, 2, 3, 4 |
|
|
30 μm |
2, 3, 4 |
|
|
20 μm |
3, 4 |
|
|
10 μm |
4 |
|
Guaranteed to be equivalent to both Sherwin and Magnaflux supplied panels.
Specifications Compliance: ASTM E1417, AMS 2647D, ISO 3452-3, JIS Z 2343-3
