Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy đo độ dày siêu âm điện từ | Phạm vi đo: | 1,5 ~ 240mm |
|---|---|---|---|
| giải phóng mặt bằng nâng: | 0~3mm | Tần số hoạt động: | 4Mhz |
| Làm nổi bật: | EMAT thickness gauge for non-destructive testing,electromagnetic thickness gauge with air coupling,EMAT air coupling thickness measurement |
||

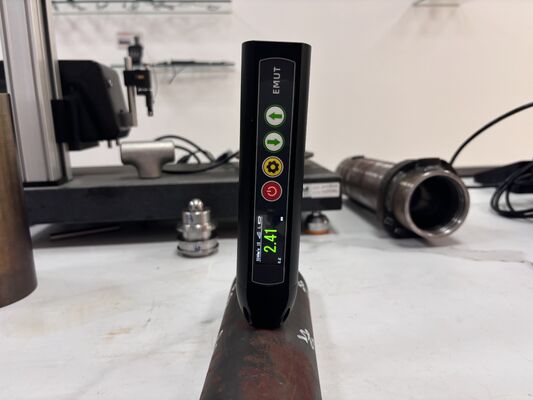

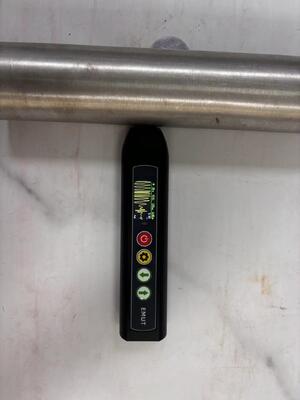

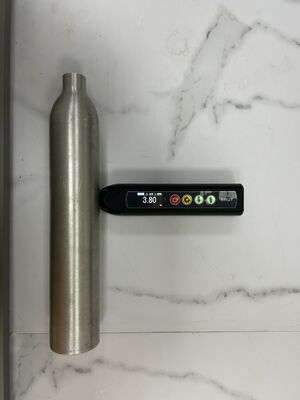

EMAT Air Coupling Electromagnetic Thickness Gauge
General introduction
The instrument adopts the principle of electromagnetic ultrasonic, and there is no need to grind the surface of the workpiece during the detection process, and no coupling agent is required
The probe and the host are integrated, and the probe can be replaced
Configurable probe types: normal temperature probe: ≤ 120 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc., with a maximum liftable distance of 4mm, high temperature probe: ≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel, with a maximum liftable distance of 2mm
Lift-off effect: (actual lift-off distance is related to material properties and degrees), anti-rust film, salt deposits or any other insulating coating (oil, varnish, porcelain, plastic, etc.) can be used as operating clearance
Features
# Pocket pen type, no coupling agent, and non-contact thickness gauge
# Human body engineering design, compact structure, super small volume, easy to carry, hand-held operation, strong magnetic absorption, improve fatigue conditions
# Accurate thickness measurement, can pass through the coating, professional algorithm program support, do not need to coupling agent, do not need to grind the workpiece surface, allow the detected surface paint and wrapping layer, allow the workpiece surface uneven
# Multi-material sound velocity can be pre-stored in the instrument, and the material sound velocity can be dynamically added and deleted at the same time. The sound velocity calibration increases the temperature compensation function, and effectively improves the measurement accuracy
# Corrosion layers are allowed and the measurement can be improved with a maximum increase distance of 3mm
# The minimum diameter (curvature) of the workpiece that can be detected is 8mm
# The maximum tilt angle of the probe: 25°
# Probe excitation method: water magnet
# Type of sound wave: shear wave
Technical parameter
| Measuring range | 1.5~240mm |
| Lifting clearance | 0~3mm |
| Receiving gain | ≤ 100dB |
| Operating frequency | 4MHz |
| Ambient temperature | -20 ° C to +50 ° C |
| High temperature sound speed compensation | automatic compensation |
| Temperature range | -150~800℃(higher temperature can be customized) |
| Probe type | standard room temperature probe, optional high temperature, high frequency probe, high temperature low frequency probe, B scanning probe |
| Resolution | 0.01mm |
| Adjustable range of sound speed | 1000~9999m/s |
| Continuous working time | 3h |
| Size | 151*76*35mm |
| Weight | 220g |
| Excitation mode | permanent magnet |
| Error range | ≤10mm, error ±0.05mm (> 10 mm + / - 0.01 + H / 200) mm (H is the thickness of the workpiece) |
| Power supply | lithium rechargeable battery |
Application
No coupling agent, and non-contact, with normal temperature and also high temperature, electromagnetic ultrasonic thickness gauge TG-14 can test thickness of all kinds of conductor material such as titanium, aluminum, copper, stainless steel, alloy steel, carbon steel and cast steel.
Standard delivery
TG-14 electromagnetic ultrasonic thickness gauge
Normal temperature probe
Instruction manual
Calibration certificate
Carrying case
Optional accessories
High temperature
High frequency probe
High temperature low frequency probe
B scanning probe
