Thông tin chi tiết sản phẩm:
|
| Tuổi thọ: | 10000h | Bức xạ trung tâm UV: | 57,4mW/cm 2 (ở khoảng cách 20cm) |
|---|---|---|---|
| Bước sóng: | 365nm | Đường kính điểm chiếu sáng hiệu quả: | 15cm (ở khoảng cách 20cm) |
| Kiểu: | lõi LED12 | ||
| Làm nổi bật: | handheld UV flashlight for fluorescence detection,spray can fluorescence detection flashlight,ultraviolet flashlight for non-destructive testing |
||

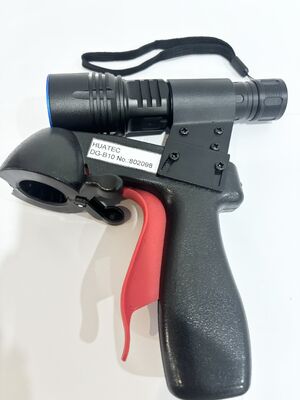

DG-B10 Handheld Spray Can Fluorescence Detection Ultraviolet Flashlight
Spray can handle operation guide:
The spray Can Mount is designed to accommodate both the DG-B10 ultraviolet flashlight and the spray can for one hand fluorescence detection.
1. Clip the DG-B10 ultraviolet flashlight into the metal bracket on the upper part of the handle and tighten the 5 screws.
2. Place the support with DG-B10 on the ridge of the spray tank. Press the two lugs, open the jaws on the fixture, and connect the spray bracket to the ridge of the spray can. Release the protruding ears to grasp the jar. Before mixing, ensure that the jar is properly secured.
3. Gently flip the sprinkler several times to mix the substances inside the tank. Press the trigger on the handle and spray evenly.
4. Squeeze the lug, open the jaw on the fixture, and remove the spray can. Before disassembling DG-B10, please perform this operation first.
To remove the DG-B10 ultraviolet flashlight from the installation bracket, first use a Phillips screwdriver to completely loosen the upper 3 screws, and then loosen the lower 2 screws to remove the flashlight.
Parameter
| Type | LED12 core |
| Lifespan |
10000H |
| Material | Aviation grade reinforced aluminum |
| Surface treatment | anodized black |
| UV central irradiance |
57.4mW/cm ² (at a distance of 20cm) |
| Wavelength | 365nm |
| Effective illumination spot diameter |
15cm (at a distance of 20cm) |
| Battery | 4 * 18650 battery |
| Voltage | 3.7V |
| Charging time |
3-4 hours |
| Product specifications |
Length 140 * Diameter φ 58mm |
| Switch mode |
Side button switch |
Standard configuration:
Handheld UV Lamp 1
Battery 4
Charging cable 1
Plastic box 1
