Thông tin chi tiết sản phẩm:
|
| Phạm vi thử nghiệm (metric): | Tốc độ: 0,1 ~ 400,0m/s2(đỉnh) Vận tốc: 0,1 ~ 400,0mm/s(RMS) Độ phân giải: 0,001 ~ 4,000mm (đỉnh-đỉnh | Tính thường xuyên: | Gia tốc: 10Hz ~ 1KHz, 1K Hz ~ 10KHz Vận tốc: 10Hz ~ 1KHz Độ dịch chuyển: 10Hz ~ 500Hz |
|---|---|---|---|
| Bộ nhớ dữ liệu: | 150 ×100 mẩu dữ liệu tuần tra 30 ~ 480 mẩu dữ liệu hồ sơ | Nhiệt độ: | 0℃ ~ 40℃ |
| Sức chịu đựng: | ± 5% | Trưng bày: | TFT: 2.8, 320 × 240 pixel với RGB |
| ắc quy: | Pin Li có thể sạc lại, 2000mAh | Độ ẩm: | 80％RH |
| Làm nổi bật: | portable piezoelectric acceleration transducer,vibration data collector transducer,non-destructive testing vibration sensor |
||

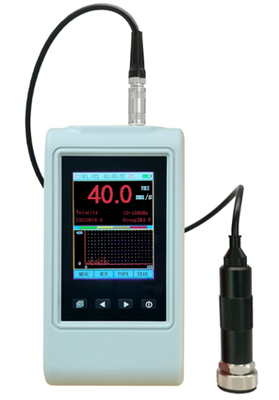

HG-6390 Portable Piezoelectric Acceleration Transducer Vibration Data Collector
HG-6390 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also records real time vibration curve.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
Built in iso10816 fault diagnosis standard, which can automatically diagnose the fault of the tested equipment.
The technical specifications of HG-6390 comply with the requirements of GB 13823.3. HG-6390 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
Configuration:
|
Standard configuration |
NO. |
Item |
Quantity |
|
1 |
Main unit |
1 |
|
|
2 |
Power Adapters:output:5V/1000mA |
1 |
|
|
3 |
Piezoelectric sensors |
1 |
|
|
4 |
Magnetic seat |
1 |
|
|
5 |
Manual |
1 |
|
|
6 |
Package case |
1 |
|
|
Optional configuration |
3 |
Probe |
1 |
|
4 |
Communication cable |
1 |
Specifications:
|
Testing range (Metric) |
Acce: 0.1 ~ 400.0m/s2(peak) Velo: 0.1 ~ 400.0mm/s(RMS) Disp: 0.001 ~ 4.000mm(peak-peak) |
|
Freq range |
Acceleration: 10Hz ~ 1KHz, 1K Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz |
|
Data memory |
150 ×100 pieces of patrol data 30 ~ 480 pieces of record data |
|
Temp |
0℃ ~ 40℃ |
|
Tolerance |
±5% |
|
Humidity |
≤80％RH |
|
Display |
TFT:2.8”,320×240 pixels with RGB |
|
Data interface |
USB(RS232/RS485),Bluetooth |
|
Overall dimensions |
140×76×28 |
|
Printer |
Wireless Bluetooth printer(Optional) |
|
Weight |
180g |
|
Battery |
Rechargeable Li battery,2000mAh |
|
Continuous working time |
Continuous operation for about 20 hours, Standby for 80 hours |
