Thông tin chi tiết sản phẩm:
|
| bức xạ tia cực tím: | 2500uW/cm2 (khoảng cách 5cm) | Độ phân giải camera: | 2048*1536, độ phân giải tối đa 3264*2448 |
|---|---|---|---|
| Máy ảnh: | 800W | Chiều dài cáp: | 2 mét, có thể tùy chỉnh thành 15 mét |
| Loại chống nước: | IP65 | ||
| Làm nổi bật: | oil drilling pipe UV endoscope,UV detection light for pipes,non-destructive testing endoscope with UV |
||

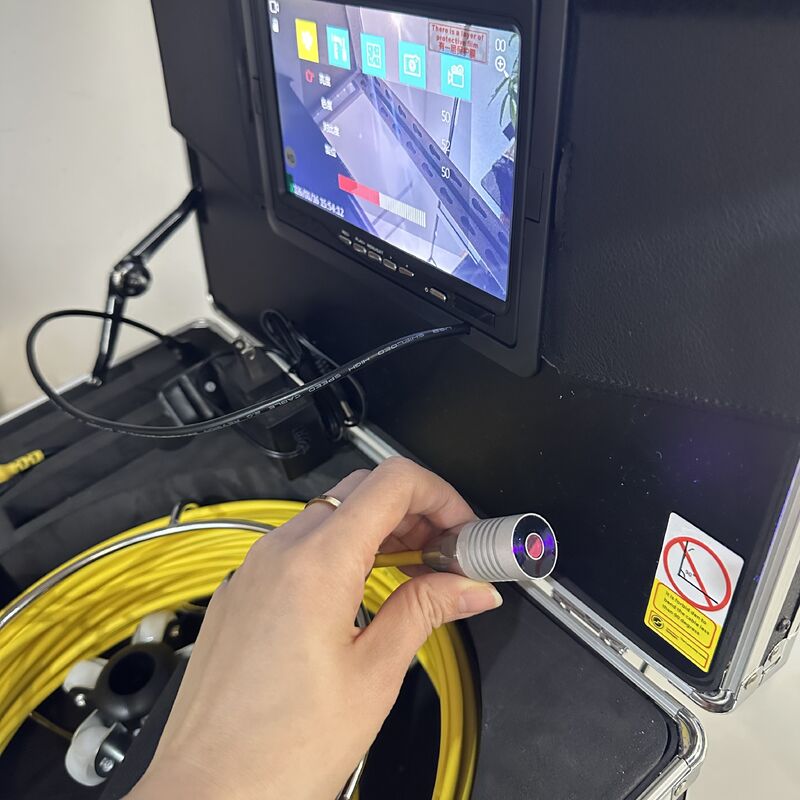

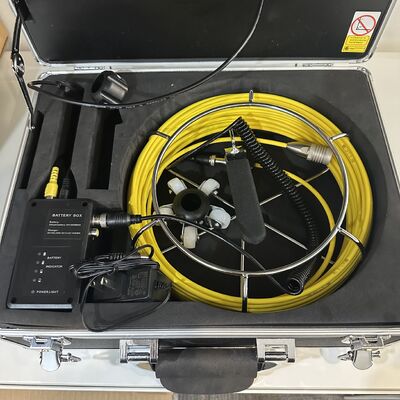

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope
Application:
Used for oil drilling pipe, is by natural gas pipeline and other linear pipeline ultraviolet detection, heat exchanger tube internal inspection with recording.
Specifications:
| Camera |
800W |
| UV irradiance | 2500uW/cm2 (5cm distance) |
| Focus | automatically |
| White light |
included |

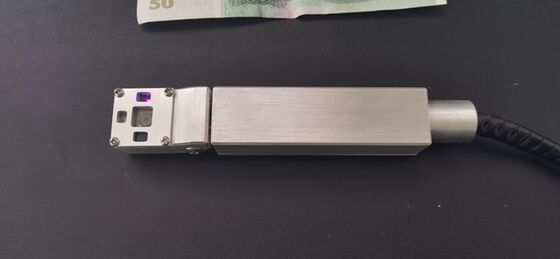

| Probe size |
25*21mm |
| Water proof type |
IP65 |
| Interface |
USB2.0 Can connect with pc through software, to store data into computer |
| Camera resolution |
2048*1536, maximum resolution 3264*2448 |
| Working direction |
The side view and front view are all possible, can move 360deg inside |
| UV camera type |
articulated, camera is fixed in one direction and rotate it to view all four walls of tube |

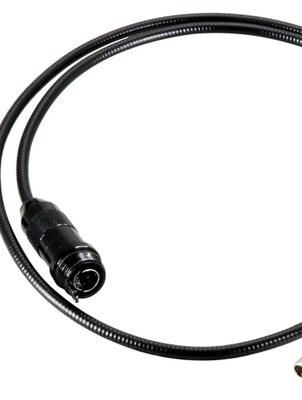

| Cable length |
2 meters, can be customized to 15meters |
| Weight |
215g |
