Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Băng đánh dấu chì NDT công nghiệp | Mục: | Băng đánh dấu chì NDT |
|---|---|---|---|
| Cánh đồng: | Ngành thử nghiệm không phá hủy | Lý thuyết: | Kiểm tra hàn |
| Việc kinh doanh: | Nhà sản xuất băng đánh dấu chì NDT | ||
| Làm nổi bật: | NDT X-ray lead marker tape,X-ray lead tape for NDT,Lead marker tape for radiography |
||

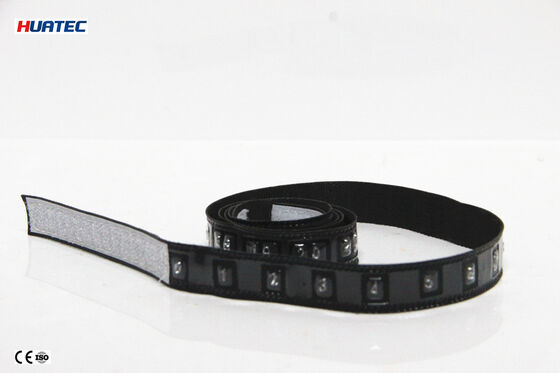

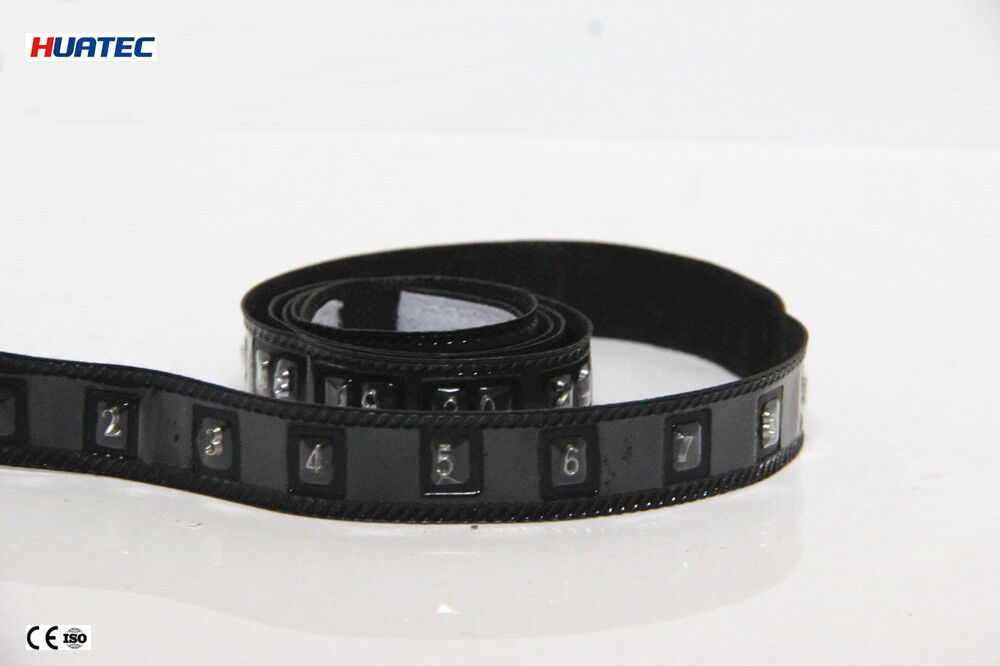

NDT X-ray Lead Marker Tape
NDT X-ray lead marking tape is a specialized tape with one side coated with pressure-sensitive adhesive and the other side embedded with lead made numbers, letters, and symbols. It is mainly used in radiographic testing (RT) to permanently and clearly identify the inspected workpiece and detection information on the film or digital image.
Core role:
Identification and traceability: Clearly display unique information on each radiographic film, such as workpiece number, weld seam number, film position number, date, etc., to ensure the traceability of test results.
Image quality indicator: By displaying the IQI model and reading, it is demonstrated that the sensitivity of this radiography meets the standard requirements.
Positioning and orientation: By placing positioning markers (such as →, ↑) and center markers (such as ⊕), clearly indicate the radiographic area, radiation direction, and film position.
Backscatter protection: The lead "B" letter on the back is used to detect and warn against backscattered radiation that may affect the quality of the film.
| Lead marker tape | space 1", 25mm |
| Lead marker tape | space 2", 50mm per meter |
| Lead marker tape | space 3", 76mm |
| Lead marker ruler | Length 500mm |
We can also prove lead markers.
| Lead letters/number | 5*3*0.8MM 100pcs |
| Lead letters/number | 6*3*0.8MM 100pcs |
| Lead letters/number | 7*4*1MM 100pcs |
| Lead letters/number | 7*4*2MM 100pcs |
| Lead letters/number | 9*6*2MM 100pcs |
| Lead letters/number | 8*5*1.6MM 100 pcs |
| Lead letters/number | 13*9*1.6MM 100pcs |
| Lead letters/number | 15*10*3MM 100pcs |
| Lead letters/number | 20*12*2MM 100pcs |
| Magnetic film frame | 120x100mm,160x100mm,etc |
| Magnetic film frame | 240x100mm,400x100mm,240x60mm,480x60mm etc |
| Magnetic Lead letters/number | 6*3*0.8MM 100pcs |
| Magnetic Lead letters/number | 7*4*1MM 100pcs |
| Magnetic Lead letters/number | 9*6*2MM 100pcs |
| Magnetic Lead letters/number | 8*5*1.6MM 100 pcs |
| Magnetic Lead letters/number | 13*9*1.6MM 100pcs |
| Magnetic Lead letters/number | 15*10*3MM 100pcs |
| Magnetic Lead letters/number | 20*12*2MM 100pcs |
| Lead marker with PVC base | 7*4*1MM 100pcs |
| Lead marker with PVC base | 8*5*1MM 100pcs |
| Lead marker with PVC base | 9*6*1.2MM 100pcs |
| Lead marker with acrylic complete cover | Lead letter size:17x7x3mm |
Advantages
Efficient: Compared to individual loose lead letters, tape form is easier to carry, manage, and use.
Clear: Provide standard and uniform fonts to ensure clear and easy to read images.
Reliable: Professional adhesives ensure that the markings will not shift or fall off during the exposure process.
Specification: Meet the mandatory requirements of various international and domestic testing standards for marking systems.
