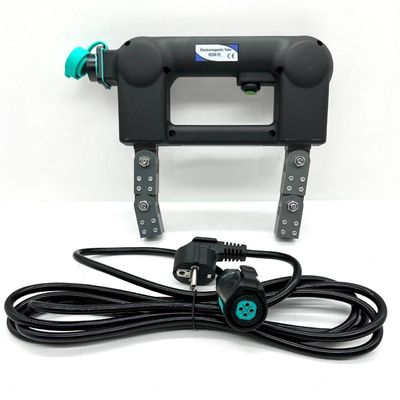

110V AC Yoke Magnetic Particle Testing HCDX-Y2
The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.
A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
SPECIFICATION COMPLIANCE
JB/T7411-2012
ASTM E1444-05
ASTM E709
EN10228-1:1999
ISO 9934
ASTM E 3024
Parameters index
|
Model Items |
HCDX-Y2 |
HCDX-Y9 |
|
|
Electrical Requirements |
AC110-115V 50/60Hz AC220-230V 50/60 Hz AC240V 50/60Hz |
||
|
Waveform |
AC |
||
|
Tangential Field Strength |
> 2kA/m at midpoint between legs / poles |
||
|
Working temperature |
-10～+40℃ |
||
|
Duty Cycle |
50%, max on time is 90 seconds |
||
|
Ingress Protection (IEC 60259) |
IP54 |
||
|
Relative humidity |
<80% |
||
|
Sensitivity |
ASTM E1444-05,ASME 2007 page number V |
||
|
DC power pack |
X |
● |
|
|
AC working current |
AC2.2A |
||
|
DC working current |
X |
DC 1.5A |
|
|
Battery charging time |
X |
3hours |
|
|
Battery working time |
X |
6h |
|
|
Leg / Pole Span |
0~220mm |
||
|
Leg size |
22*22mm |
||
|
Power cord length |
3M |
||
|
Lifting Force |
A C |
≥7.1kg (69N) |
|
|
D C |
≥22.2kg (216N) |
||
|
Weight |
|||
Note:“X”not included, “●”included
FEATURES

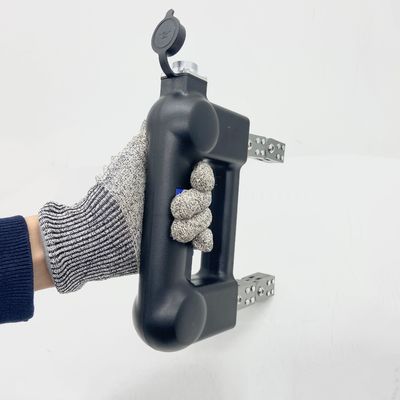

• Ergonomic, light-weight design
• IP54 sealed housing resists dust and water

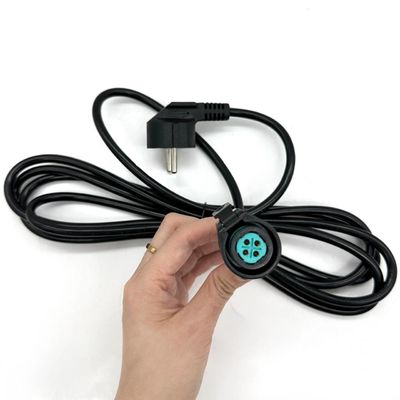

• Field-swappable power cord
• Isolated, replaceable trigger switch
• Steel shields for leg protection
• Exceeds ASTM lifting specifications

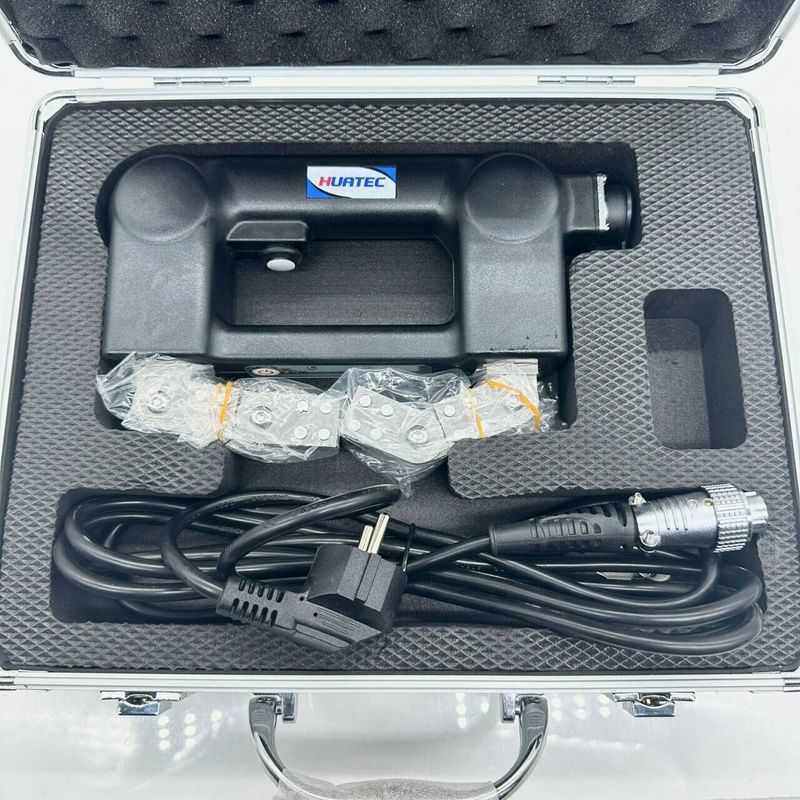

• Convenient carrying case supplied with all yoke shipments
• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs
• Two power supply modes are optional:
l 110V/220V/240V Single-phase AC power supply (straight plug mode);
l DC magnetization power supply (DC battery pack with digital display screen)
• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.
APPLICATIONS
Defect location: Surface Ideal for:
• Field Testing
• Difficult to reach areas
• Spot, weld and in-service inspections Defect examples:
• Seams
• Tears
• Shrink cracks
• Quenching cracks
• Fatigue cracks
Standard package
HCDX-Y2
Yoke
Power cord
Calibration certificate
Warranty card
Carrying case
HCDX-Y9
Yoke
Power cord
Calibration certificate
Warranty card
Carrying case
DC battery pack
DC battery charger
DC battery power cord
DC battery bag
Carrying case
