Thông tin chi tiết sản phẩm:
|
| X hướng: | 50mm | Hướng Z: | ± 5 mm |
|---|---|---|---|
| Đầu ra dữ liệu: | PDF/WiFi in | Ngôn ngữ tương ứng: | Tiếng Trung/Tiếng Anh |
| Cung cấp/tiêu thụ điện: | AC220V ± 10% hoặc UPS Power | ||
| Làm nổi bật: | portable surface profilometer tester,small profile tester for surfaces,surface profilometer with warranty |
||

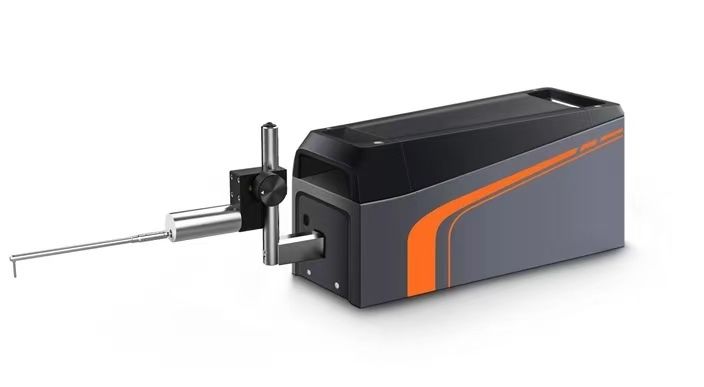

SRT-7600 Small Portable Surface Profilometer Profile Tester

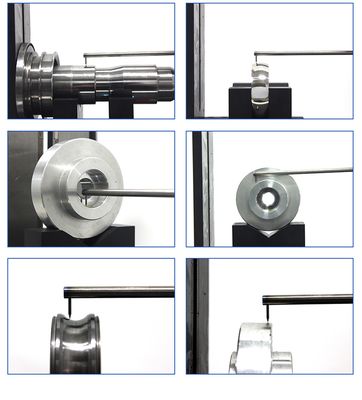

SRT-7600 small profilometer is a brand-new product launched by our company. It is used to describe the surface structure of processed parts and is suitable for detection in environments such as workshop verification stations, laboratories, and metrology rooms. It is also applicable for on-site and in-place metrology. It can evaluate geometric parameters such as convexity and inclination Angle, as well as surface shapes like roughness profile, waviness profile, original profile, support rate curve and graphics. The measurement parameters include those from China, Japan, the United States, Germany and various ISO standards. It has a user-friendly software interface and convenient operation habits. We have designed configurations on the software that can record different operation scenarios. When measuring different workpieces, there is no need for complicated Settings. Just select the configuration and measure with one click.
|
Model |
SRT-7600 |
|
||||
|
Range |
X Direction |
50mm |
|
|||
|
Z Direction |
±5mm |
|
||||
|
Resolution |
Z Direction |
0.016μm/±500μm ~ 0.16μm/±5mm |
|
|||
|
Driver |
Straightness |
1μm/50mm |
|
|||
|
Analysis algorithm |
Corresponding standard |
JIS-82,JIS-87,JIS-94,JIS-01,JIS-13,ISO-84,ISO-97,DIN-90,ASME-95,GB-14 |
|
|||
|
Parameter |
Roughness profile |
Ra75,Rq,Rp,Rv,Rc,Rt,S,R3z,PPI,Ra,Rsk,Rku,Ry,Sm,RΔa,RΔq,Rz,Pc,Rλa,Rλq,lr,RSm,Rz94,RPc,RS,Rz.I,Rpm,HSC |
||||
|
Waviness profile |
WCA,WCC-q,WCC-p,WCC-v,WCC-m,WCC2Sm,WCA,WC-q,WC2p,WC-v,WCM,WC2Sm,WC-t,Wa,Wq,Wsk,Wku,Wp,Wv,Wz,Wc,Wt,WSm,WΔq,WPc |
|||||
|
Original outline |
Rsk,Rku,Rmax,Sm,Δa,Δq,Rz,λa,λq,lr,TILT A,AVH,Hmax,Hmin,AREA,Rz.J,Pa,Pq,Psk,Pku,Pp,Pv,Pc.I,Pt,PSm,PΔq,PPc,Pc |
|||||
|
Support rate curve |
Rk,Rpk,Rvk,Mr1,Mr2,V0,K,A1,A2 |
|||||
|
Graphic |
NCRX,AR,R,Rx,NR,CPM,SR,SAR,AW,W,Wx,Wte,NW,SW,SAW,Rke,Rpke,Rvke,Mr1,Mr2,V0,K |
|||||
|
|
Geometric tolerance |
Convexity, inclination, straightness, perpendicularity, parallelism, runout |
||||
|
Evaluation curve |
Roughness profile, waviness profile, original profile, support rate curve, graph |
|
||||
|
Characteristic curve |
Support rate curves (Rmr(c), Rmr2(c), Rδc(c), tp(c), tp2(c), Htp(c)), amplituder-frequency analysis curves, amplitude distribution curves |
|
||||
|
Shape removal |
Global domain, first half, second half, center, 2 points, curve |
|
||||
|
Filter type |
Gaussian,FFT,PC,DP,2RC |
|
||||
|
Filter stop wavelength |
λs |
0,2.5,8,25μm |
||||
|
λc |
0.08,0.25,0.8,2.5,8mm |
|||||
|
λf |
0.8,2.5,8,25mm |
|||||
|
Evaluation length |
Sampling length × number of samples The sampling length has standard mode and custom mode. |
|
||||
|
Measurement speed |
0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s |
|
||||
|
Return speed |
0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s |
|
||||
|
Sensor |
Model |
Standard universal type |
|
|||
|
Sensor method |
Differential inductor |
|
||||
|
Range |
±50mm |
|
||||
|
Measuring needle |
5μmR Diamond at 90°, 10μmR Diamond at 90°, optional |
|
||||
|
Force measurement |
7.5mN (adjustable) |
|
||||
|
Operating machine |
Display section |
Computer |
|
|||
|
Data output |
PDF/WiFi Print |
|
||||
|
Corresponding language |
Chinese/English |
|
||||
|
Size and weight |
Power supply/Consumption |
AC220V±10% or UPS power |
|
|||
|
Power consumption |
About 50VA |
|
||||
|
Weight |
Net weight: 5Kg It contains 10Kg of packaging |
|
||||
|
Set size |
Actuator 350(L)×116(W)×146(H) |
|
||||
Features
*High-precision large-travel guide rails, with a length of up to 50mm
*The sensor range is ±5mm
*It adopts a combination form of a main unit and a computer all-in-one machine, which is convenient to carry and suitable for on-site measurement
*The parameters are complete, including geometric tolerances, surface shapes and multiple national standards
*The lead-free measurement provides a more realistic feedback on the topography of the machined surface
*The probe can be directly replaced, and the replacement operation is convenient, which can achieve measurement in different scenarios
*The sensor can be freely switched in the same direction as the guide rail. The depth measurement groove can be measured from the side without being restricted by the depth of the measuring needle and the groove
*Support the switching between metric and imperial systems for the operation interface and result parameters
*Supports switching between Chinese and English languages
*The analysis algorithm including multiple filtering methods can be freely combined to meet the requirements
*Supports automatic multiple calibrations of standard blocks, significantly reducing calibration errors
|
Host actuator |
1 pc |
|
Sensor |
1 pc |
|
Desktop computer or laptop |
1 pc |
|
Standard probe |
1 pc |
|
Roughness standard test block |
1 pc |
|
Product Qualification Certificate |
1 pc |
|
Product Manual |
1 pc |
|
Warranty card |
1 pc |
|
Main unit waterproof box |
1pc |
|
Random tool |
internal hexagonal wrench (2.5mm) 1pc |
