Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy dò lỗ hổng dòng điện xoáy | Loại thăm dò: | loại cầu |
|---|---|---|---|
| Tần suất khuyến khích: | 10Hz12MHz | hỗ trợ giao diện: | Giao diện USB loại A/B |
| Làm nổi bật: | Eddy current flaw detector for metal,Real-time defect detection equipment,Non-destructive testing detector with warranty |
||
Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector

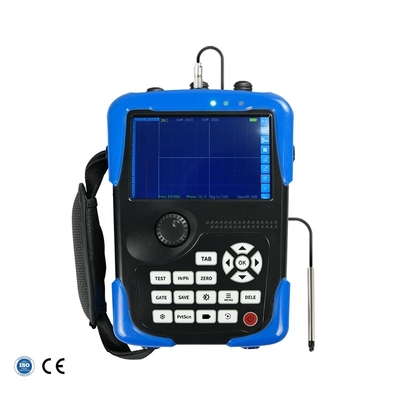

The unique feature of the HUATEC HEF-601 series eddy current testing instrument lies in the use of the most advanced microelectronics digital processing technology, real-time dual frequency eddy current testing technology, and microprocessor technology, which can effectively detect defects in metal Vertexrial components in real time. It adopts the most advanced design concept, with dual position adjustment of buttons and shuttle, which can greatly improve the efficiency of parameter setting.

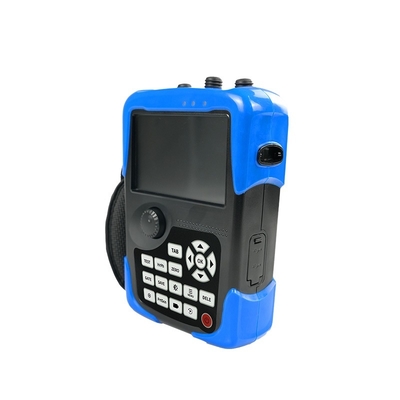

The HUATEC HEF-601 is compact, easy to operate, and has an IP65 waterproof rating. It is waterproof, dustproof, and drop resistant, and can adapt to very harsh working environments.
Main Function
★ Unique dual adjustment mode of buttons and shuttle knob, simple, convenient and easy to use
★ Three probe modes (single ended, bridge, coupled) to choose from
★ 10k-10M ultra wide excitation frequency range
★ In addition to the conventional adjustable excitation frequency, the high-end and low-end frequencies are also adjustable to meet the requirements of special Vertexrial flaw detection
★ In addition to the conventional adjustable gain, both high amplifier gain and low amplifier gain can be adjusted in segments
★ X. Y-axis bidirectional gain compensation or suppression (can be performed independently)
★ The gate has a unique intelligent gate mode (automatically ignoring non defect signals) in addition to the conventional circular, rectangular, and straight lines
★ Impedance plane diagram and time base scanning diagram display
★ Storing data and videos can be directly connected to a computer for export without the need for software installation, making it easy to use
★ High definition, high sensitivity
★ Easy to operate, English operating interface
★ Multiple filtering methods
★ Data transmission adopts USB communication interface
★ Built in lithium battery, capable of continuous operation for more than 8 hours
★ Ip65 waterproof rating. Anti fall and shockproof, suitable for harsh working environments
| Model | HEF-601 | HEF-801 | HEF-801A |
| probe Type | Bridge type | Single ended, bridge type | Single ended, bridge type, coupled |
| Incentive frequency | 10Hz～12MHz | 10Hz～20MHz | |
| Excitation voltage | 0-10v continuously adjustable, with a step size of 0.1 | 0-12v continuously adjustable, with a step size of 0.1 | |
| High gain amplifier | 0-50, step 1 continuously adjustable | 0-100, step 1 continuously adjustable | |
| drive | Level 4 | Level 8 | Level 8 |
| Microprocessors | 32-bit (dual core) | 32-bit (dual core) | 64 bit (dual core) |
| Pre stored detection parameters | 10000 pieces | 100000 pieces | 1 million pieces |
| ★Memory | 8GB (non expandable) | 8GB (non expandable) | 64G (expandable up to 1TB) |
| ★Waterproof grade | No | IP54 | IP65 |
| ★Low gain amplifier | 0-250, step 1 continuously adjustable | ||
| ★Low end frequency | 0-120, step 1 continuously adjustable | ||
| ★High end frequency | 0-120, step 1 continuously adjustable | ||
| ★Grid grayscale | 10 levels adjustable | ||
| X-axis gain | -100～100 | ||
| Y-axis gain | -100～100 | ||
| High pass filtering | 0～500Hz | ||
| Low pass filtering | 10Hz～10KHz | ||
| digital filtering | 1～100 | ||
| ★ Filter type | HR filtering and smoothing filtering are optional | ||
| ★Pre amplification | Choose from 1x, 2x, 5x, 10x | ||
| ★Refresh time | Levels 1-10 are optional, step 1 | ||
| ★Bandwidth limitation | High, medium, and low adjustable | ||
| ★Amplitude and phase measurement | One click automatic phase adjustment/or manual adjustment | ||
| ★Zero adjustment | One click adjustment of zero position | ||
| frozen | Can pause image detection at any time for better analysis | ||
| phase | 0-360 degrees | ||
| ★Gate type | Circular, rectangular, straight, intelligent (automatically ignores non defect signals) | ||
| Gate alarm | Sound alarm | ||
| Balance method | Digital electronic balance | ||
| ★Screen display mode | Normal and strong light modes (suitable for working under strong sunlight) | ||
| ★Data recording and management | The instrument can store images and videos, | ||
| Other performance indicators | |||
| ★Interface support | There are two A/B type USB interfaces in total | ||
| ★Display screen | 5.0 "high brightness TFT color LCD screen, 800 * 480 pixels | ||
| Working temperature range | -10～+50℃ | ||
| ★Size and weight | 135 (length) x 54 (width) x 205mm (height); | ||
| External power supply | AC:100-240V DC:15V3.8A | ||
