Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Trình xem phim | Mô hình: | HFV-2060 |
|---|---|---|---|
| Cường độ ánh sáng tối đa: | > 130.000cd/㎡ | Dễ dàng xem: | > 4.0 Mật độ |
| Làm nổi bật: | Máy xem phim ánh sáng LED,Mật độ phim >4.0D Movie Viewer,Máy xem phim đèn LED màu trắng tinh khiết |
||
Pure White LED Light LED Film Viewer Film Density >4.0D
Features:
Maximum Light Intensity: > 130,000cd/㎡
Easily View > 4. 0 Density
Pure White LED Light
50,000 Hour Lamp Life
Low Power Consumption
Fan cooling
Foot Switch
Uniform Viewing Area: 98% Full Screen
Dimmer Control: 0% to 100% continuous
Surface temperature: <18°
Built-desktop stand
Design: Modern, Stylish and Simple
Power Requirements: 85-264VAC/47-60Hz
The power adapter: AC: 90-264VAC / 47-63Hz DC: 12V 5A
Safety Regulation and Electromagnetic Compatibility
Schematic diagram:

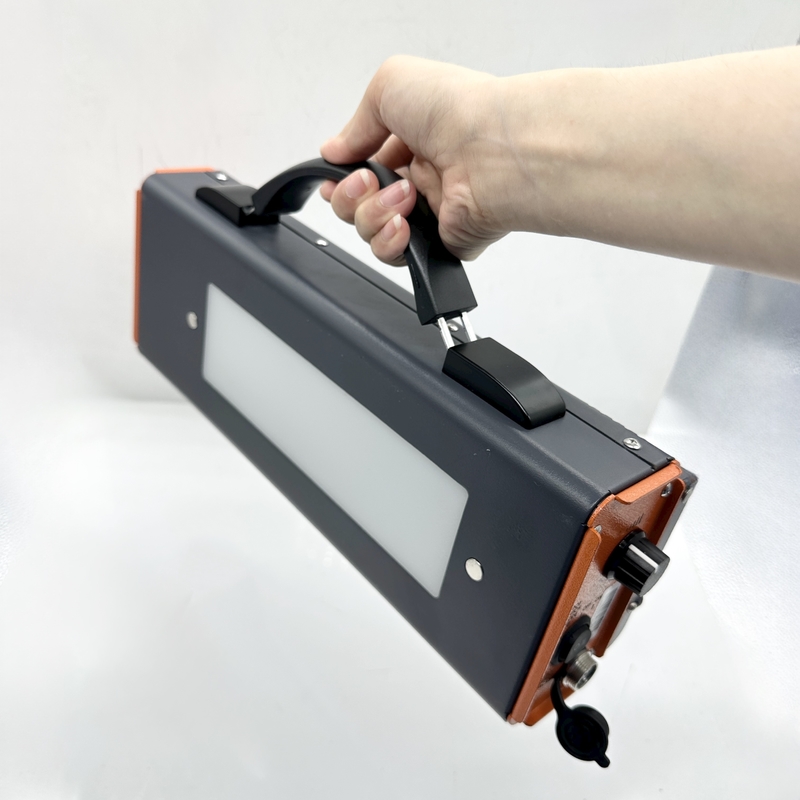

1. Handle
2.Cover
3.Viewing screen
4. Substrate-mask Magnetic adsorption
5. Built-desktop stand
6. Hanging hole

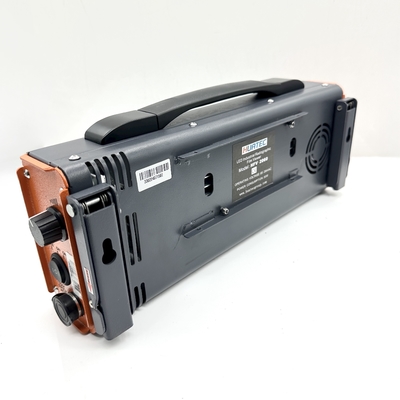

7.Cooling fan
8.Brightness adjustment knob
9.Mode switch
10. Foot switch socket
11.Power switch
12. Fuse
13. Power outlet
Specifications:
| Adapter Input voltage | 85-264VAC / 47-60Hz DC: 12V 5A Power: 60W |
| Maximum Light Intensity | >130,000 Cd/㎡ |
| Film density | >4.0D According to the inspection report |
| Surface temperature | <18°Celsius Continuous operation for 24 hours) |
| Uniform Viewing Area | 98% Full Screen |
| Dimmer Control | 0% to 100% continuous |
| Control mode | Manual + Foot-switch |
| Cooling Method | Forced air cooling |
| Dimensions | 335mm*60mm*130 mm (L*W*H) |
| Viewer window | 220mm*60mm (L*W) |
| Viewing-mask window | 200 mm*40 mm (L*W) |
| Weight | 2.5 KG |
Package Contents:
LED viewer 1pc
Power adapter 1pc
Cigarette lighter adapter 1pc
Foot switch 1pc
AC power cord 1pc
Viewing mask 1pc
Magnetic film holder 2pcs
Magnetic ruler 1pc
User's manual 1pc

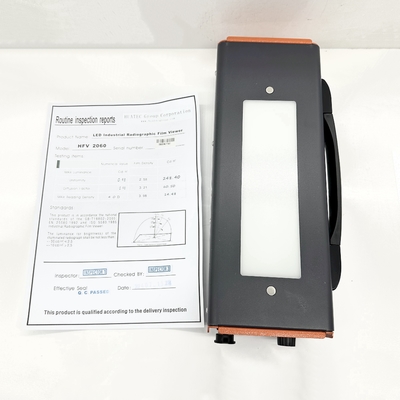

Calibration certificate 1pc
DC power warning:
Continuous use of DC power in the vehicle may cause battery discharge! Warning: ensure that the vehicle's cigarette lighter socket supports 12VDC 5A power consumption. Do not connect the LED viewer to an unverified DC power supply - it may damage the LED viewer and the vehicle!
1. Unplug the DC plug from the DC socket (12) on the side of the viewer.
2. Connect the power cord of the attached cigarette lighter to the DC socket (12).
3. Connect the DC power cable to the cigarette lighter port of the vehicle. After completing the above steps.
4. The power switch (8) on the right control panel of LED viewer is in three positions: off, on and foot switch mode
5. Turn the power switch (8) to on. Adjust the brightness control (7) on the right control panel to the desired intensity.
6. If you want to control through the foot switch, please select the foot switch mode on the power / mode switch (8), and then press the foot switch.
