Thông tin chi tiết sản phẩm:
|
| Kích cỡ: | 250×165×55mm | Nhiệt độ hoạt động: | -10℃ đến 50℃ |
|---|---|---|---|
| bộ nhớ lớn: | Đồ thị 1000 A | vận tốc vật liệu: | 100～20000 M/giây |
| Nhiệt độ bảo quản: | -30℃ đến 50℃ | Độ nhạy: | Tối đa 120 DB ở Độ phân giải có thể lựa chọn 0.1, 1.0, 2.0, 6.0 DB. |
| Chế độ kiểm tra: | Tiếng vang xung, phần tử kép và truyền qua | Phạm vi: | 0-10000 mm, ở vận tốc thép |
| Làm nổi bật: | portable ultrasonic flaw detector,high performance flaw detector,industrial defect inspection tester |
||

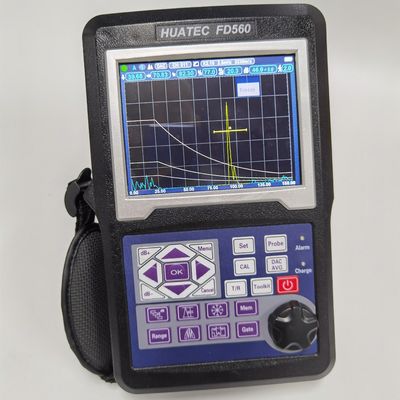

User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, TCG AWS, etc.
★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Can use probe frequency 20M perfectly .
★ IP65 standard. Protective rubber casing. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge.
Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
Connectting U-Disk,the unit can get unlimited memory.
There are 17 standards of in the unit.
Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.
| Parameter | Specification |
|---|---|
| Size | 250×165×55mm |
| Storage Temperature | -30℃ to 50℃ |
| Transducer Connections | BNC or LEMO |
| Bandwidth (amplifier bandpass ) Frequency | 0.2 to 25 MHz |
| Reject (suppression) | 0 to 80% Full Screen Height |
| Power Requirements | AC Mains 100-240 VAC, 50-60 Hz |
| Dynamic Range | ≥38dB |
| Resolving Power | >40dB (5P14) |
| Material Velocity | 100～20000 M/s |
| Sensitivity Leavings | >68dB |

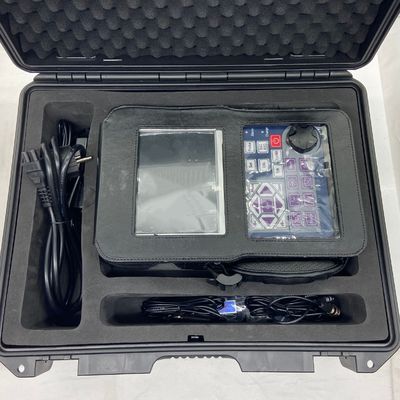

Base Instrument Package
Portable Ultrasonic Flaw Detector
Straight Beam Transducer (2.5 MHz, Φ20)
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
Interconnect Cable for the transducer (Q9-C5,or optional C9- C5)
Rechargeable Li-Ion Battery Package, 8 amp hour
Power supply/charger unit
Operating Manual in English
App Software
protective rubber casing
Strap
Options:
1. Swiveling metal support, Damping support makes it stands in any angle.
2. Bluetooth connection to mobile device to generate and print detection reports on-site. Bluetooth App on mobile device.
3. IIW V2 block.
4. Leather sheath.
