Thông tin chi tiết sản phẩm:
|
| Kích thước phim: | Minimum: 50×100mm, Max. Tối thiểu: 50 × 100mm, Tối đa. Width: 450mm Chiều rộ | Thời gian xử lý: | 3.2～16min. 3,2～16 phút. （0.1min. （0,1 phút. adjustable） có thể |
|---|---|---|---|
| Tốc độ nạp vào: | 155～765 mm/phút. | Thể tích bể: | Dev. Dev. Fix. Sửa chữa. Wash.13L for each Wash.13L cho mỗi cá |
| Dev. Dev. Temp. Nhiệt độ.: | 20～40oC (có thể điều chỉnh 0,1oC) | Nhiệt độ khô.: | 20～70oC （có thể điều chỉnh 5oC） |
| Tiêu thụ điện năng: | 110～240V 10A, 50 hoặc 60Hz | ||
| Làm nổi bật: | NDT film processing machine auto chemical replenishment,high capacity X-ray film processor,flat X-ray film processor with warranty |
||

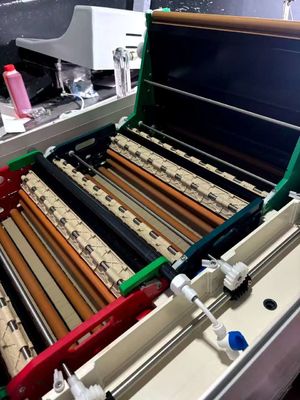

HDL-430D High Capacity NDT Film Processing Machine Auto Chemical Replenishment Roll & Flat X Ray Film Processor
The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry!
|
Specification |
Model: HDL-430D |
|
Film Size: Minimum: 50×100mm, Max. Width: 450mm Film Type: roll orflat film Film probes: 4 sets of micro inductive probes Processing Time: 3.2～16min. (0.1min. adjustable) Feed-in Speed:155～765 mm/min. Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time) Tank Volume: Dev. Fix. Wash.13L for each Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡ Dev. Temp.: 20～40℃ (0.1℃ adjustable) Fix. Temp.:automatically adjustable Dry Temp.: 20～70℃ (5℃ adjustable) Water Temp.: 5～30℃ Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown Power Consumption:110～240V 10A, 50 or 60Hz Weight: G.W: 128kg, N.W: 88kg Dimension: appr.: 108×71.5×113cm3 |
