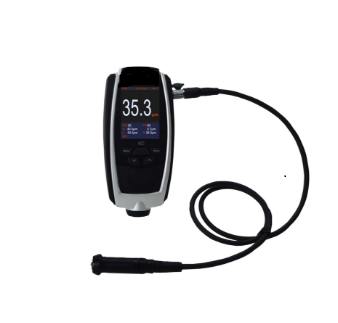

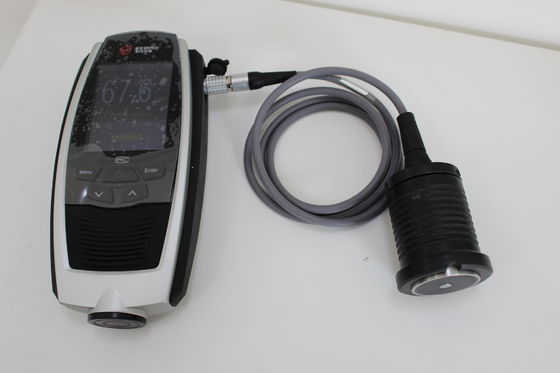

TG-6001 Series Coating Thickness Gauge Magnetic Induction Eddy Current Bluetooth 2.0 10000 Data Storage Industrial Paint Film Thickness Meter

TG-6001 Series Coating Thickness Gauge Magnetic Induction Eddy Current Bluetooth 2.0 10000 Data Storage Industrial Paint Film Thickness Meter

TG-6001 SERIES Coating Thickness Gauges use latest technology；it can configure multi different probe to measure different work pieces；2.4 inches TFT color screen；Blue tooth 2.0 wireless communication technique；   We develop our own PLL technique to make measuring work more stable；inverted display,display in Chinese and English,multi measuring mode and so on, These features can make gauge more suited to the job requirements of the industrial field and provide customers with more convenience. Its performance has reached the contemporary international advanced level of similar gauge.

Technique parameter

Principles of measurement

TG-6001 SERIES Coating Thickness Gauges can choose different kind of probes. For example, Fe probe use magnetic induction method to measure the thickness of non-magnetic coating on ferromagnetic material, NFe probe use eddy current method to measure the thickness of non-conductive coating on conductive metal.

Applied range

This gauge can be used widely in machinery, automobile,shipbuilding,petroleum,chemical,electroplating, spraying plastics, enamel, plastics and so on.

Features:

● Magnetic and eddy current two measurement methods.

1.  Measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

2. Measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

● 7 types of probes (F0.5, F1.2, F3, F5, F10, N1.2,F16) can be chosen

●Temperature compensation: PLL technique

● With screen flip function:  can manually select flip display measurement data

● Measurement speed: According to different applications, customers can choose two measurement speeds: single measurement and continuous measurement.

●The instrument can be calibrated in three ways, the system error of the probe can be corrected by the basic calibration method.

● With storage function: can store more than 10,000 measuring results.

● With delete function: you can delete one data in the storage group, or delete all stored datas for new measurement.

●Set limit: automatically alarm when measured value outside the limit

●Display language: English

●Unit of measurement: metric, imperial convertible

●With wireless communication function: Blue tooth 2.0, can communicate wirelessly with computer and printer.

●With low voltage indication function

● There is a beeper indication during operation

● There are two ways to shut down: manual shutdown mode and automatic shutdown mode.

●V-groove: The V-groove structure is convenient for measuring the coating on the outer surface of various sizes pipes.

● Large flat bottom: The special large flat bottom probe structure makes the instrument measurement more stable and repeatable.

●Anti-slip mat: The professionally designed anti-slip mat and the non-slip texture on the back of the casing make the customer not easy feel tired for long time operation.

Probe prameters (mm)

Probe prameters (mm)
