Thông tin chi tiết sản phẩm:
|
| Phạm vi đo: | 0,65～500mm (45＃Thép) | Phạm vi vận tốc âm thanh: | 1000～9990m/s |
|---|---|---|---|
| Độ chính xác: | 0,01mm | Lỗi: | 1% * Giá trị độ dày±0,05mm |
| thăm dò tần số: | 2 MHz-10 MHz | Môi trường hoạt động: | Nhiệt độ trong khoảng -10oC～60oC Độ ẩm tương đối < 90％ |
| Làm nổi bật: | Portable ultrasonic thickness tester,Industrial thickness tester for boiler,Ultrasonic tester with 1000-9990m/s sound velocity |
||

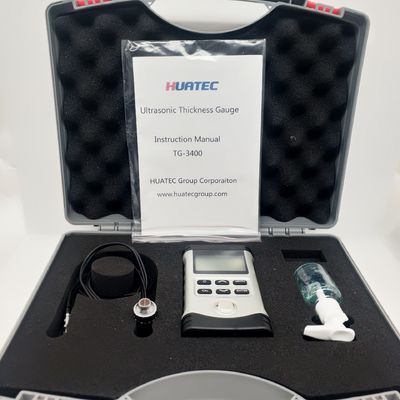

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum
Application: used for measuring the thickness of hard materials, such as: steel, stainless steel,aluminum, copper, chrome and other metal materials, as well as plastics, rubber, ceramics, glass and other nonmetals. The gauges are widely used in petroleum, chemical industry, electric power, boiler,metallurgy, shipbuilding, aviation, aerospace and other fields.
Specifications
| Measuring Range | 0.65～500mm (45＃Steel) |
| Sound Velocity Range | 1000～9990m/s |
| Precision | 0.01mm |
| Error | 1％ * Thickness Value±0.05mm |
| Operating Environment | Temperature Between -10℃～60℃Relative Humidity < 90％ |
| Dimension | 175*70*25mm |
| Probe Frequency | 2MHz-10MHz |
| Display | Auto Backlight |
Standard accessories
1,TG-3400 Unit 1 Set
2,Probe (one forφ6 and one forφ10) 2
3,Couplant 1 Bottle
4,Steel File 1
5,Step Block 1
6,1.5V Battery 2
7,Instruction Manual 1
8,Guarantee Card and Certificate of Conformity 1
9,Carrying Case 1
Optional accessories:
1,Print and Connections for Communication and Printing 1
2,Microcomputer Communication Software 1
3,Tool Kit for Measurement 1
Reference Sound Velocity of Common Materials:
|
Material |
Sound Velocity(M/S) |
Material |
Sound Velocity(M/S) |
|
Aluminium |
6400 |
Copper |
4700 |
|
Zinc |
4170 |
Stainless Steel |
5790 |
|
Silver |
3600 |
Brass |
4640 |
|
Gold |
3240 |
Tin |
3230 |
|
Steel & Iron |
5900 |
Organic Glass |
2730 |
Note: The thickness of many other materials can also be measured.
