Thông tin chi tiết sản phẩm:
|
| Nguồn điện: | hai pin nút (LR44 hoặc SR44) | Dung lượng pin: | Khoảng 5 giờ làm việc liên tục |
|---|---|---|---|
| Nhiệt độ hoạt động: | 0oC ~ 40oC | Độ ẩm: | <85% |
| Làm nổi bật: | HG6410 vibration meter for velocity,vibration meter for non-destructive testing,velocity testing vibration meter with warranty |
||

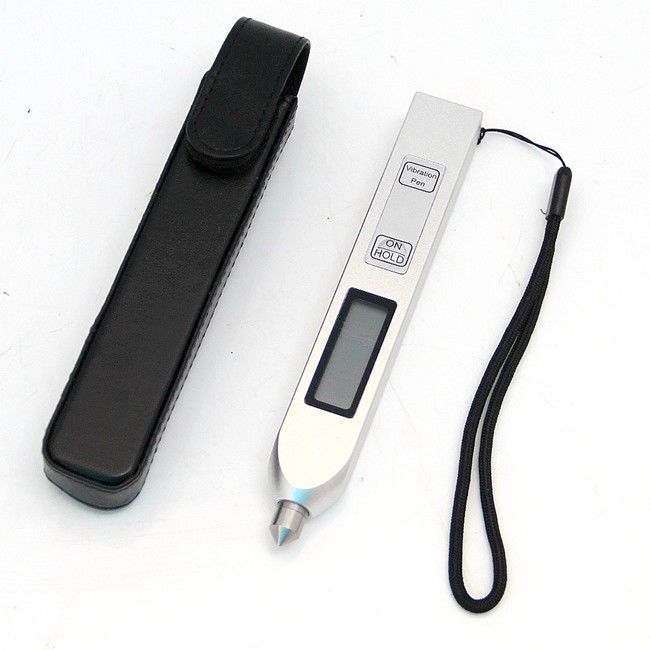

Model HG6410/HG6430 Vibration Meter
Features:
Technical Specifications:
| Model | HG6410 | HG6430 |
|---|---|---|
| Parameter | RMS of vibration velocity (mm/s) | Acceleration, Velocity, Displacement |
| Testing range | Velocity: 0.1mm/s~ 199.9mm/s |
Acceleration:0.1m/s2-199.9m/s2(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak) |
| Frequency range | Velocity:10Hz ~ 1kHz |
Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz |
| Accuracy | ±5% ± 2digits | |
| Display | 3 1/2 digits LCD | |
| Power supply | two button batteries(LR44 or SR44) | |
| Battery capacity | Approx. 5 hours working continuously | |
| Operating temperature | 0℃ ~ 40℃ | |
| Humidity | <85% | |
| Dimension | 150mm*22mm*16mm | |
Configuration:
| NO. | Item | Quantity | |
|---|---|---|---|
|
Standard Configuration |
1 | Main uni. | 1 |
| 2 | Screwdriver | 1 | |
| 3 | Batteries SR44LR44 1.5V | 2 | |

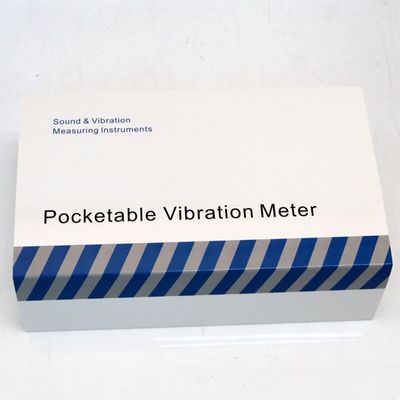

| 4 | Box | 1 | |
| 5 | Document | 1(set) |
