Thông tin chi tiết sản phẩm:
|
| Công suất động cơ: | 1kw | Đường kính đĩa làm việc: | φ254 mm (tùy chọn φ200, φ230, φ300mm) |
|---|---|---|---|
| RPM (r/min): | 5-1000. | Bốn tốc độ tự động (r/min): | V1=200, V2=400, V3=600, V4=800 (người dùng có thể thay đổi) |
| Lập trình: | Người dùng có thể tự lập trình, gọi | ||
| Làm nổi bật: | programmable metallographic grinding machine,variable speed polishing machine for metallurgy,metallurgical laboratory test equipment |
||

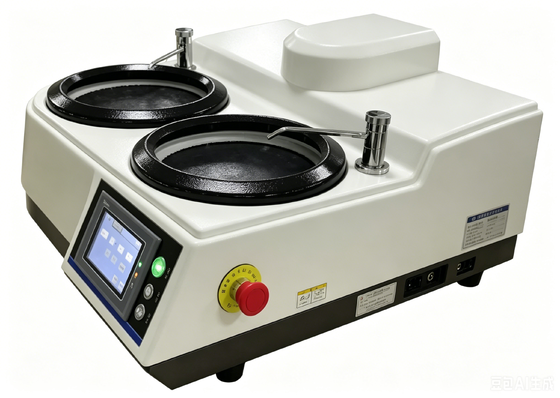

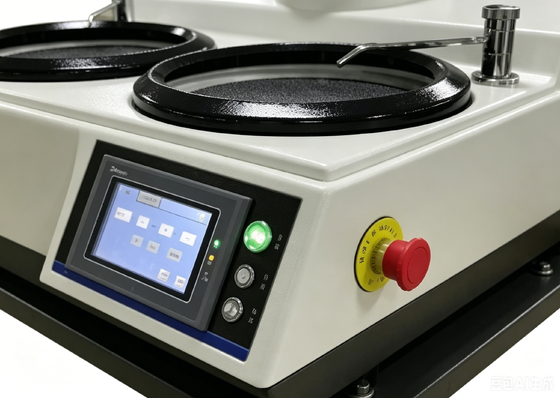

HPA-2SE Programmable Variable Speed Metallographic Grinding & Polishing Machine For Metallurgy Laboratory Test
I, Product Features
1. PLC+ high power motor, double grinding disc;
2. 1KW high power motor , no matter the speed is fast or slow, the torque is large and constant;
3. The speed range is wide, from 5 RPM to 1000 RPM (maximum 1500 RPM);
4. The working table quickly starts and stops, and the turntable can stop rotating in 2 seconds;
5. Speed, grinding time, rotation direction and other grinding parameters, and automatically save, easy to call;
6. Manual mode, four gears;
7. Imported PLC brand, reliable quality;
8. Touch screen interface, easy to set grinding and polishing parameters;
9. Connect and control polishing droplet (optional).
II, Technical parameters
|
Item |
Specifications |
|
Model |
HPA-2SE |
|
Motor power |
1Kw |
|
Working disk diameter |
φ254 mm (optional φ200, φ230, φ300mm) |
|
RPM (r/min) |
5-1000. |
|
Turning direction |
Counterclockwise/clockwise optional, positive and negative turn automatic switch |
|
Programming |
User can self-program, call |
|
Four-speed manual (r/min) |
V1=200, V2=400, V3=600, V4=800 (user can change) |
|
Overall dimension (mm) |
760 x 730 x 360 (L * W * H) |
|
Weight |
38kg |
3. Standard accessories
|
quantity |
Name |
Quantity |
|
|
Anti-stick disc (254mm) |
2 |
Magnetic working disc (254mm) |
2 |
|
Sandpaper (with back glue, 250 diameter) 180#, 800#, 1500# |
2 each |
Diamond suspension grinding polish 6 microns 200 ml |
1 bottle |
|
Flocking polishing cloth (with back glue, 250mm) |
1 sheet |
Canvas polishing cloth (with back glue, 250mm) |
1 piece |
