Thông tin chi tiết sản phẩm:
|
| Phương pháp phát hiện: | Rò rỉ từ thông (MFL) | ||
|---|---|---|---|
| Làm nổi bật: | mobile drill pipe MFL detector,compact magnetic flux leakage equipment,fast detection speed NDT tool |
||

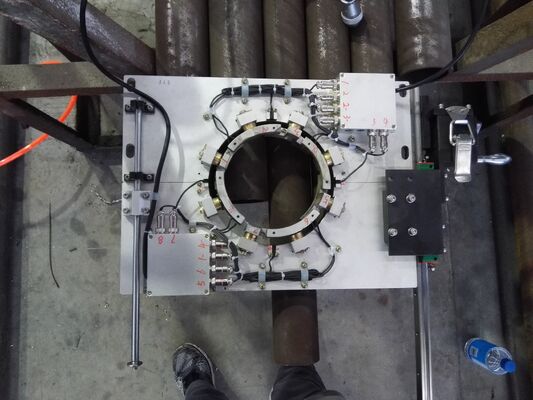

The HMTD mobile drill pipe magnetic flux leakage detection system provides advanced non-destructive testing capabilities for drill pipe inspection. This innovative equipment addresses critical safety concerns in drilling operations by identifying defects that could lead to catastrophic failures.
The system utilizes Magnetic Flux Leakage (MFL) technology, recognized as the most reliable method for inspecting ferromagnetic tubular materials. This approach offers superior detection speed, effectiveness, and operational simplicity.
Working Principle: When ferromagnetic materials like drill pipes are magnetized, magnetic flux distributes evenly through defect-free sections. However, at defect locations (cracks, holes, wear), the magnetic permeability changes significantly, causing magnetic flux to leak from the surface. Sensitive magnetic components detect these field distortions to identify and characterize defects.
The mobile console integrates electrical control systems, excitation power supply, motor drive power, and voltage stabilization components. The computer signal processing system analyzes detection data and generates comprehensive test reports.
