Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Đo độ dày lớp phủ theo phương pháp coulometric | Người mẫu: | TG-100G |
|---|---|---|---|
| chất nền: | Thép, đồng, hợp kim đồng, kẽm đúc, nhôm, v.v. | Phạm vi đo: | 0,03～300μm |
| Nghị quyết: | 0,01um | dữ liệu: | Cơ sở dữ liệu PC |
| Làm nổi bật: | Coulometric coating thickness gauge with printer,Coating thickness measurement device with data transfer,Non-destructive testing equipment for coating analysis |
||

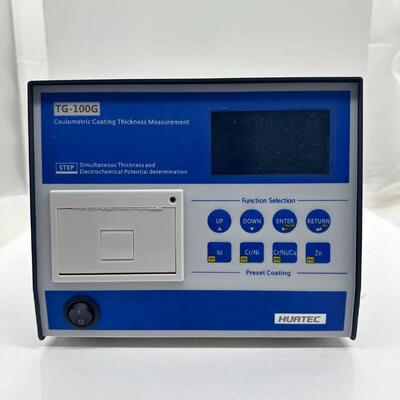

Coulometric Coating Thickness Measurement Inbuilt Printer Can Send Data to Computer
TG-100G is more focused on the automobile, motorcycle, and sanitary ware industries, because these industries will use the potential difference function. And neodymium iron boron industry, to solve the test problems of the underlying nickel. Automobiles such as: signs, car door locks, car handles, car interior parts, motorcycles such as mufflers, motorcycle, brackets, sanitary wares such as: mixing water valves, towel racks, neodymium Iron-boron: mainly nickel-copper-nickel electroplating.
Technifical specification
| Plating type | Single metal pating layer | Composite multiple plating layer | Alloy plating layer | Multi-layer nickel |
| Cr,Ni,Cu, Zn,Sn,Ag, Au,Cd,Co, Pb etc. | Cr/Ni/Cu etc. | NiP,ZnNi, SZn,SPb etc. | The thickness of each layer of multilayer nickel and the potential difference between nickel layers | |
| Substrate | Metal | Non-metal | ||
| Steel,copper,copper alloys, die-cast zinc,aluminum etc | Plastic,neodymium iron boron,ceramics etc | |||
| Measuring range | 0.03～300μm | |||
| The best use range 0.03～50um,Over 50um,the error will gradually become larger | ||||
| Resolution | 0.01um | |||
| Repeatability | ≤5% | |||
| Indication error | ≤10% | |||
| Potential range | 0～3000mv | |||
| Potential accuracy | 0.01mv | |||
| Probe size | Standard:φ2.4,φ1.7(unit:mm) Optional:φ1.2,φ1.0,φ0.8(unit:mm) |
|||
| Wire test | Diameter 0.050～4mm multi-layer coating thickness on the cylindrical surface, without conversion, direct reading |
|||
| Test stand | Standard:STD07 Optional:STD16,STD19,STD-W wire test stand |
|||
| Calibration | Factory calibration calibrate a single coating with calibration foils or uniformly calibrate |
|||
| Stop measurement | Automatic judgment | |||
| Stand-alone use | When not measuring the potential difference | |||
| A laser or inkjet printer can be purchased separately to print A4 format test results, Excel format, content can be customized In stand-alone use, a thermal printer can be used to print the test results |
||||
| Print Content | Plating type, single measurement value, average value, maximum value, minimum value, standard deviation, coefficient of variation, time Thickness-potential curve |
|||
| Display mode | Online use:PC Screen display Stand-alone use:126*64 dot LCD screen |
|||
| Data stroage | PC Database | |||
| Test Hot Key | Stand-aone use,you can customize the hot key for single plating or multiple plating/substrate combination | |||
| Curve Analysis | can be displayed on the same screen and modified at will | |||
| Pause test | For thick coatings, you can pause at any time and continue the test after changing the electrolyte | |||
| Data check | multiple query methods | |||
| Operating system | Windows XP,win7,win10 | |||
| Software upgrade | New products in December 2019, continuous upgrade | |||
| Power Supply | AC 220V, AC 110V can be customized | |||
| Host Size | 200*255*161(mm) | |||
