Thông tin chi tiết sản phẩm:
|
| Rotate speed: | 50-1000 RPM reverse rotation can be switched | Tốc độ tấm mẫu: | Có thể chuyển đổi vòng quay ngược 30-200 vòng / phút |
|---|---|---|---|
| Working air source pressure: | More than 0.6MPa | Động cơ điện: | 0,75 mã lực |
| Cung cấp điện: | AC220V, 50/60Hz, 2KW | ||
| Làm nổi bật: | automatic grinding polishing machine,touch screen polishing machine,HPA series grinding machine with warranty |
||
| Rotate speed | 50-1000 RPM reverse rotation can be switched |
| Sample plate speed | 30-200 RPM reverse rotation can be switched |
| Working air source pressure | More than 0.6MPa |
| Motor power | 0.75 Kw |
| Power supply | AC220V, 50/60Hz, 2KW |

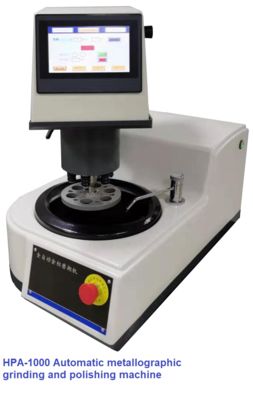

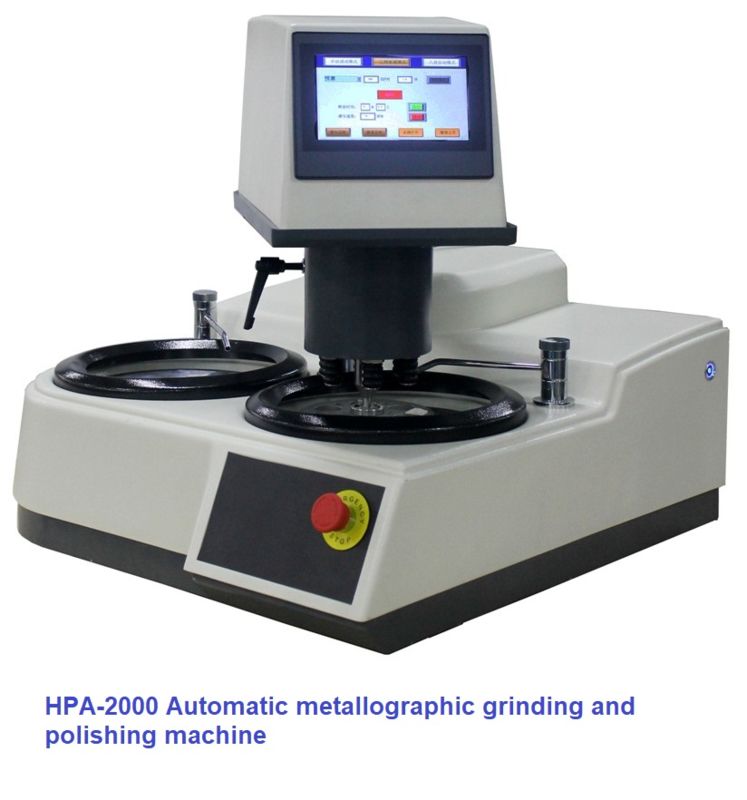

| Item | HPA-1000 | HPA-2000 |
|---|---|---|
| Station | Single disc | Double disc |
| Working disc diameter | Standard φ254mm (optional φ230mm, φ203mm) with magnetic switchboard system | |
| Rotate speed | 50-1000r/min with forward/backward rotation switching | |
| Grinding head speed | 30-200r/min | |
| Manual mode | 30 sets of parameters, each set can be set and called separately | |
| Automatic mode | 30 sets of process (each containing 10 steps of process parameters) | |
| Sample holder | 30mm can be 6 holes (various options available) | |
| Grinding head locking mode | Electromagnetic automatic lock | |
| Working air source pressure range | More than 0.6MPa | |
| Motor power | 0.75Kw | |
| Input voltage | AC220V, 50/60Hz, 2KW | |
| Dimension | 700 x 730 x 350 | |
| Weight | 74kg | |
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| Input-water pipe 8mm | 1 | Output-water pipe 25mm | 1 |
| 4-point filter (60 mesh, double layer) | 4 | Rubber pad with strainer | 1 |
| Hose hoops | 1 | Triangle valve | 1 |
| Fast twist joint | 1 | Teflon tape | 1 |
| Waterproof ring | 2 | Hook | 1 |
| Data cable | 1 | Power cable | 1 |
| Touch pen | 1 | Machine manual & certification | 2 |
| Diamond polishing liquid, 6micron, 200ml | 1 | Anti-sticky disc (250mm) | 2 |
| One side sticky grinding paper (250 mm) 180#, 320#, 600#, 1000# | 2 each | Polished cloth (with glue, 250mm) Flocking (brown), canvas | 1 each |
